What is the process for ordering a custom FSDU?

A complex retail rollout schedule can feel overwhelming. You need a custom floor display to launch next quarter, but one wrong structural choice could derail your entire campaign timeline.

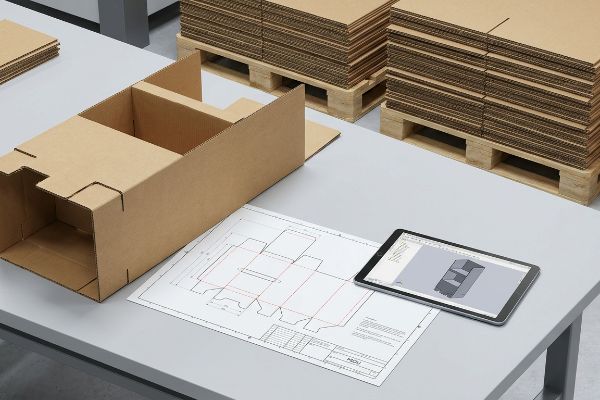

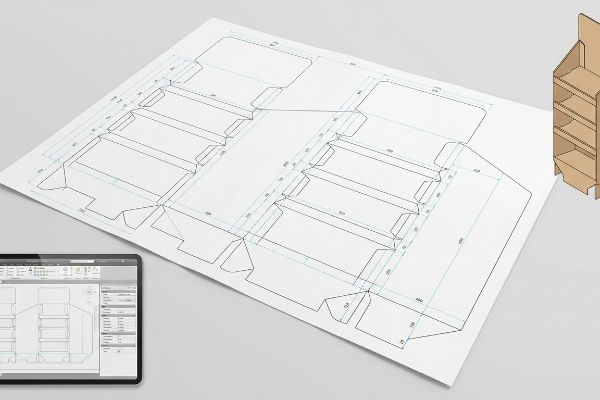

Ordering a custom FSDU involves structural engineering, precise die-line creation, commercial printing, and localized co-packing. This exact process demands specialized CAD (Computer-Aided Design) planning, rigorous material selection like double-wall corrugated cardboard, and strict compliance with retailer sizing before finalizing mass production and palletized ocean logistics.

Let's break down exactly how you move from a flat concept to a fully loaded, high-performing display on the retail floor.

How to set up retail store displays?

Getting your units onto the store floor safely requires foolproof execution, not just a good design.

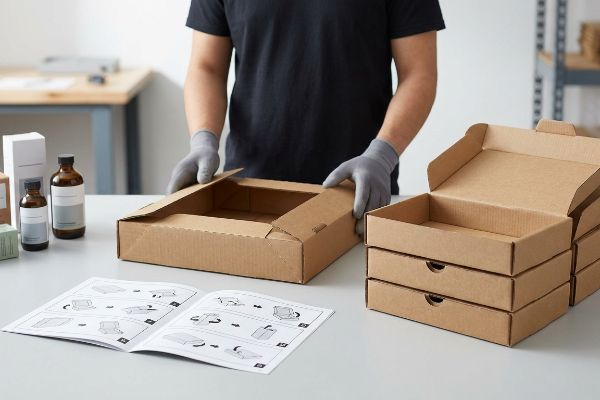

Setting up retail store displays requires following visual, no-text instruction guides step-by-step. Field personnel must carefully fold the pre-scored corrugated base, safely lock the modular shelves into place using friction-fit tabs, and verify the structural stability before loading heavy CPG (Consumer Packaged Goods) merchandise.

But knowing the theoretical folding sequence won't save you if the physical structure fights back during installation.

The Assembly Speed Trap: Why Pre-Glued Modular Trays Win

Most brands assume store personnel will happily spend twenty minutes assembling a complex, origami-style cardboard puzzle. They send out flat-packed kits with confusing black-and-white text manuals, expecting a flawless execution.

I frequently see clients try to save pennies on shipping volume by leaving every shelf flat. In the real world, a busy grocery clerk will spend five minutes sweating to force a complex tab into a tight slot, hear the sickening tear of raw paperboard, and eventually just tape it together, ruining your premium brand image. To prevent this micro-friction at scale, I engineer pre-glued modular trays that arrive folded flat but pop open instantly with a satisfying, stiff snap. This simple structural pivot saves an estimated three minutes of assembly time per unit¹, drastically cutting co-packing labor costs and guaranteeing your rollout actually makes it out of the backroom.

I refuse to rely on store clerks to build load-bearing structures. Over-engineering the pre-glued joints before they ever leave my facility is the only way I guarantee brand consistency and structural survival.

🛠️ Harvey's Desk: Are your store personnel struggling with complex cardboard origami? 👉 Get Your Assembly Audit ↗ — Direct access to my desk. Zero automated sales spam, I promise.

What does CDU stand for in retail?

Maximizing limited checkout space is critical, but a poor footprint will get your product tossed out.

A CDU stands for Counter Display Unit, a highly compact retail merchandiser engineered for checkout counters and tight tabletops. These specific units drive rapid impulse purchases, holding lightweight FMCG (Fast-Moving Consumer Goods) securely while strictly adhering to strict retailer height and dimensional footprint limitations.

Securing checkout space is difficult, but keeping your unit from being rejected by the store manager is the real challenge.

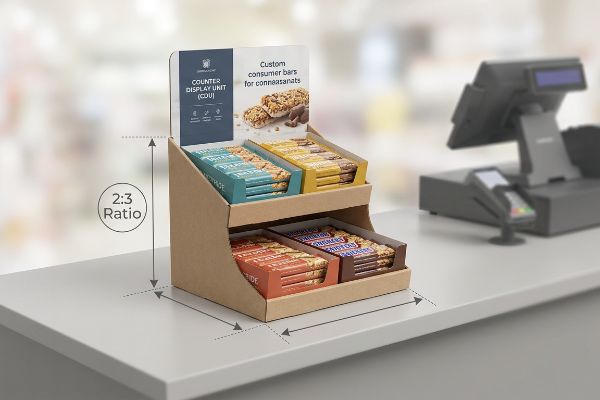

Mastering the Countertop Footprint: The 2:3 Stability Ratio

Junior designers love creating tall, striking register units to capture consumer attention from across the aisle. They often draft structural dielines based entirely on graphic real estate, pushing the back header as high as possible to fit massive branding.

I see this blind spot constantly when brands try to cram too much product into a tiny footprint, making the unit dangerously top-heavy. When a hurried shopper bumps the shelf, the entire display teeters and crashes onto the floor, scattering product everywhere and causing an instant retailer rejection. To eliminate this liability, I strictly enforce a 2:3 depth-to-height ratio on all POS (Point of Sale) designs⁴. If your header is 15 inches (381 mm) tall, the base must be exactly 10 inches (254 mm) deep to mathematically anchor the center of gravity, drastically reducing restocking labor and saving your campaign from the dumpster.

I never negotiate with gravity. Designing a beautiful unit means nothing if I don't calculate the physical tipping point to ensure it survives the chaos of a busy checkout line.

🛠️ Harvey's Desk: Are your current checkout units leaning dangerously forward when fully loaded? 👉 Request a Stability Check ↗ — Download safely. My inbox is open if you have questions later.

What does Fsdu stand for in retail?

Dominating the main aisle requires more than bright colors; it demands serious structural endurance.

An FSDU stands for Free Standing Display Unit, a standalone promotional structure placed directly on the retail floor. These large fixtures bypass standard store shelving entirely, allowing ambitious brands to showcase extensive inventory, utilize life-size graphics, and command 360-degree consumer attention in high-traffic aisles.

Securing the floor space is just step one; making sure your fixture survives the retail environment is an entirely different battle.

The 50-Touch Rule: Engineering for Aisle Durability

Many buyers treat aisle fixtures as disposable paper products, assuming a standard corrugated profile will last an entire quarter⁷. They approve structural files without considering the immense physical abuse these fixtures endure from rogue shopping carts and aggressive restocking.

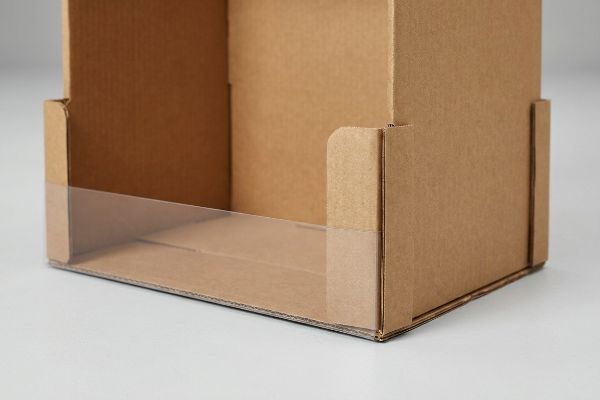

It is a common trap that catches even experienced procurement teams when they try to save material costs by using single-wall board for the entire chassis. Think of it like building a house on a sand foundation; the moment a wet store mop hits the base, the raw paper fiber absorbs the water, and the entire unit sags, looking exhausted and cheap. I combat this by applying the 50-Touch Rule⁸ and strictly enforcing a double-wall corrugated base with a clear poly-coat barrier⁹ for the bottom four inches (101.6 mm). This targeted reinforcement dramatically extends the lifecycle of the campaign, effectively eliminating early replacement costs and securing your structural investment.

I engineer every floor fixture assuming it will be aggressively abused. Protecting the base is how I ensure your marketing dollars stay standing for the entire promotional window.

🛠️ Harvey's Desk: Are your bottom shelves sagging under the weight of heavy inventory? 👉 Claim Your Structural Audit ↗ — No forms that trigger endless sales calls. Just pure value.

What is the difference between CDU and RDU?

Shrinking a floor unit to fit on a counter is a fast track to a compliance disaster.

The difference between a CDU and an RDU involves physical placement and strict retail compliance. Counter Display Units are designed for tabletop checkout zones within limited reach ranges, while Retail Display Units sit firmly on the main floor, heavily anchored to standard GMA (Grocery Manufacturers Association) pallet dimensions.

The terminology seems simple, but mixing up the legal design constraints between these two zones will ruin your launch.

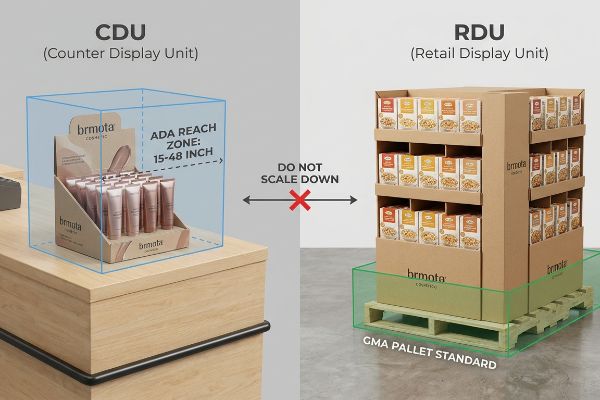

The ADA vs GMA Spatial Constraint: Why Scaling Down Fails

Brands frequently ask to take a successful, large RDU floor campaign and simply reduce the dieline by 50 percent to serve as a CDU at the register. They assume a proportional scale-down is an easy way to save on engineering fees and tooling costs.

I see this all the time when a scaled-down file completely ignores the strict legal and logistical rules dictating these two separate zones in US retail. A shrunken floor unit placed on a 36-inch (914.4 mm) high checkout counter usually pushes the top shelf entirely out of the ADA (Americans with Disabilities Act) 15-48 inch (381-1219 mm) forward reach compliance window¹³, leading to a frustrating interaction where the shopper has to stretch awkwardly to grab a product. To prevent massive chargebacks from store managers, I permanently separate the engineering pipelines; anchoring POP (Point of Purchase) floor models to pallet logistics, and POS counter units strictly to human reach limits, saving clients thousands in rejected inventory.

I do not allow shortcuts across retail zones. Respecting the distinct spatial physics of both the counter and the floor is how I keep campaigns completely audit-ready.

🛠️ Harvey's Desk: Are you trying to force a floor display to work on a checkout counter? 👉 Get Your Compliance Review ↗ — Direct access to my desk. Zero automated sales spam, I promise.

What does CTU stand for in retail?

Precision at the checkout counter isn't just about graphics; it's about microscopic structural math.

A CTU stands for Counter Top Unit, a highly compact merchandiser meant specifically for the tops of checkout zones or pharmacy shelves. These specialized fixtures elevate product visibility while requiring exact dimensional precision to securely interlock thick cardboard without physically expanding beyond their designated micro-footprint.

But getting one small unit to look perfect on a digital screen is vastly different from mass-producing 5,000 units that actually assemble seamlessly.

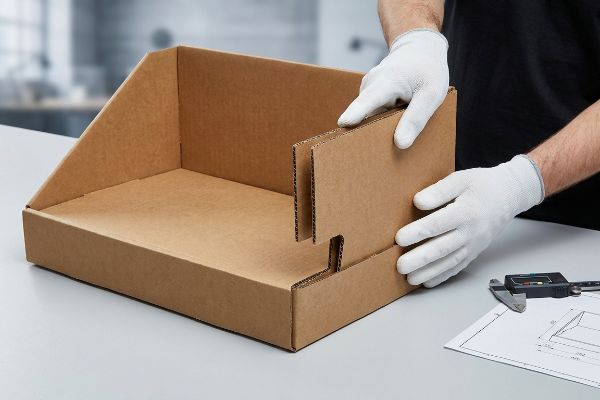

The Caliper Compensation Trap: Why Standard CTUs Fail on the Factory Floor

Even veteran designers often draft CTU slots and tabs in basic illustration software at the exact same width as the mating panel. They assume a simple digital line will translate perfectly to thick paperboard, sending over beautiful flat art that completely ignores material thickness.

This isn't just theory—I see this happen on the testing floor when we run pre-production samples of E-flute units. When my co-packing team attempts to fold a 0.06-inch (1.5 mm) thick panel¹⁴ 90 degrees, the paper fiber physically consumes space, and because the digital slot wasn't widened to compensate for the fold's outer radius, the rigid tabs jam violently, causing the printed top-sheet to tear with an awful crunching sound. I fix this by using parametric design to mathematically apply a specific caliper compensation algorithm, adding a precise 0.04-inch (1 mm) clearance to every receiving slot. By enforcing this strict geometric tolerance, I ensure the assembly time drops by roughly 42 seconds per unit¹⁵, saving clients thousands in manual labor fees during full-scale fulfillment.

I refuse to let digital assumptions dictate physical reality. Recalibrating every single slot for bend allowance is the invisible engineering that separates amateur prototypes from flawless mass production.

🛠️ Harvey's Desk: Do you know the exact moisture content of your current corrugated supplier's B-flute before litho-lamination? 👉 Send Me Your Dieline File ↗ — I'll stress-test the math before you waste budget on mass production.

Conclusion

You can source cheap counter units, but when those tight, uncompensated tabs tear during assembly, you are looking at a brutal reality that slows down the co-packing line by an estimated 30% and instantly wipes out your project's profit margin. Over 500 brand managers use my prepress checklist to avoid these exact fatal early-stage mistakes. Stop guessing on material bend tolerances and let me personally audit your structural math through my Free Dieline Audit ↗ to catch these invisible friction points before you authorize mass production.
