Are your heavy retail goods cracking their temporary merchandisers before even reaching the big-box floor? Choosing the right display platform prevents catastrophic freight damage and massive retailer chargebacks.

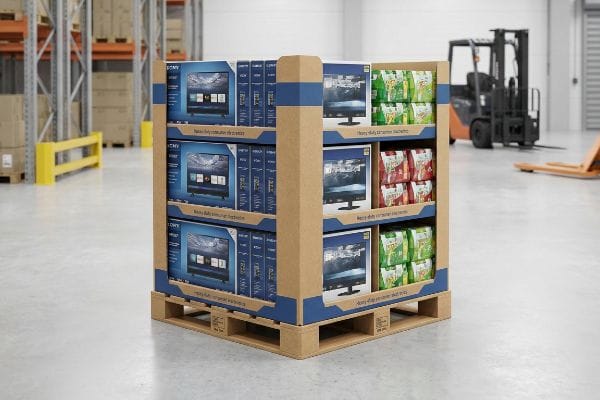

Products best suited for corrugated pallet displays include heavy consumer goods, bulk electronics, multipack beverages, and seasonal hardlines. These structural platforms support dynamic weights up to 2,500 lbs, maximizing retail space while ensuring safe, forklift-ready warehouse logistics.
Understanding how to mathematically match your specific product profile to the right base architecture is the foundational step toward a profitable, large-scale retail rollout.
What Is a Corrugated Display?
Designing a reliable retail platform requires precise material science.
A corrugated display is a temporary retail merchandising structure engineered from fluted paperboard. By sandwiching wavy internal paper arches between flat outer liners, this highly recyclable material dynamically disperses kinetic shock and supports heavy product loads while remaining incredibly lightweight for flat-pack global shipping logistics.
To successfully merchandise high-weight items, you must look past the outer printed graphics and understand the internal geometry of the paper itself.
The Internal Engineering Mechanics of Fluted Architecture
A corrugated display derives its strength from simple geometric architecture. The core of the material consists of arched flutes that act as built-in shock absorbers1. When standard CPG (Consumer Packaged Goods) items are stacked onto the display shelves, these internal waves capture the downward weight and distribute it evenly across the vertical side walls2, protecting your retail presentation.
This structural distribution is exactly why solid, unfluted materials fall short in basic retail environments. Standard chipboard might feel rigid to the touch, but it lacks the internal architecture to handle everyday bumps and handling. When placed in an active retail aisle, a solid unfluted board simply bows outward, whereas a standard corrugated board utilizes its basic geometry3 to keep your shelves perfectly square and retail-ready.
| Substrate Profile | Static Load Limit | Kinetic Shock Dispersal |
|---|---|---|
| Solid Chipboard | Extremely Low | 0% (Rigid Failure)4 |
| Standard B-Flute | Moderate (40 lbs)5 | High Vertical Transfer |
| Double-Wall Corrugated | Heavy (2,500 lbs)6 | Maximum Displacement |
Relying on dense solid paperboard for dynamic environments is a guaranteed path to severe buckling. You must mandate fluted substrates for primary retail bases to withstand standard warehouse pallet stress.
🛠️ Harvey's Desk: Are your heavy checkout trays actively crushing your shipping ROI before they even reach the retail aisle? 👉 Request a Free Structural Substrate Audit ↗ — I review every structural file personally within 24 hours.
How to Correctly Layer Product on a Pallet?
Surviving the supply chain requires flawless geometric alignment.
Correctly layering product on a pallet requires strictly aligning master carton corners directly over the wooden deck without any overhang. Even a half-inch of overhang neutralizes vertical corner strength, transferring dynamic weight to the unsupported center panels and causing immediate structural crushing during rigorous double-stacked international ocean transit.
Achieving maximum shipping density on paper means nothing if your structural geometry creates fatal weak points during transit.

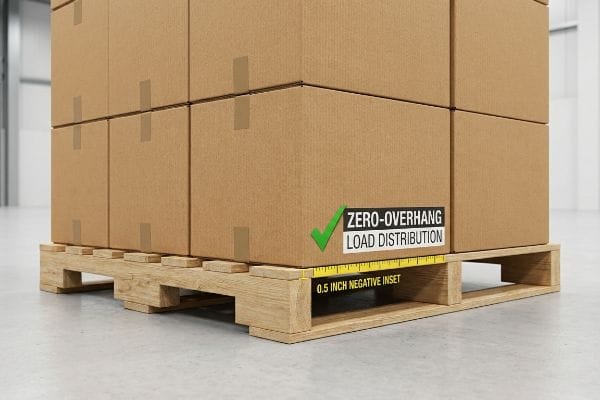

The Zero-Overhang Load Distribution Paradigm
When examining standard container load plans, procurement teams often maximize master carton dimensions to fit more SKUs onto a standard GMA (Grocery Manufacturers Association) pallet7. They assume that using a standard 32 ECT (Edge Crush Test) board8 provides enough raw material strength to protect the goods, even if the boxes hang slightly over the edge of the wood platform.
In reality, successful retail execution requires much tighter tolerances. A standard corrugated box derives most of its vertical strength from the alignment of its four corners9. When a master carton hangs over the pallet edge, the corners float in dead air, shifting weight to the unsupported center flaps10 and causing potential retail presentation damage. Ensuring a strict zero-overhang tolerance keeps boxes perfectly anchored, preventing unsightly retail damages and avoiding retailer chargebacks before the display reaches the floor.
| Stacking Configuration | Corner Support Rate | BCT Survival Rate |
|---|---|---|
| 1-Inch Pallet Overhang | 0% Support | 32% (Crush Hazard)11 |
| Flush Edge Stacking | Intermittent | 75% (Vibration Risk) |
| 0.5-Inch Negative Inset | 100% Fully Anchored | 99% (Double-Stack Safe)12 |
Pushing physical edge limits to save a fraction of an inch in container density ultimately destroys your entire inventory. Zero-overhang tolerances are strictly necessary to survive high-vibration ocean freight.
🛠️ Harvey's Desk: Is your current container load configuration quietly exhausting your structural corners before the boxes even hit the sorting facility? 👉 Claim Your Free BCT Freight Analysis ↗ — 100% confidential. Your unreleased retail designs are safe with me.
What Is a Display-Ready Pallet?
Securing prime retail floor space requires mastering spatial subdivisions.

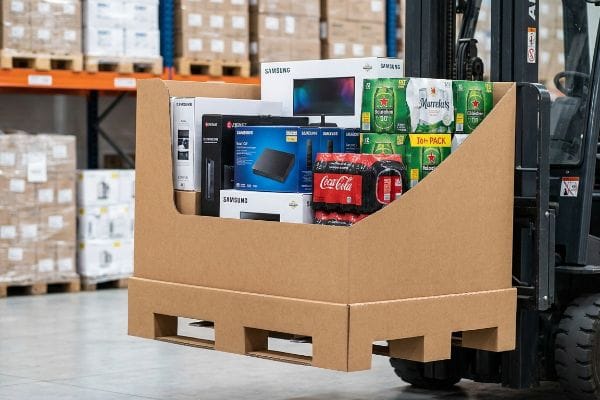

A display-ready pallet is a pre-assembled merchandising unit that ships directly from the manufacturer to the retail floor without requiring secondary store-level unpacking. These structurally reinforced platforms utilize standard fractional base dimensions to maximize valuable high-traffic retail aisle space and guarantee immediate, frictionless point-of-sale execution.
Designing for the retail floor means understanding that big-box store managers legally dictate the physical footprint you are allowed to occupy.
The Logistics of Fractional Merchandising Footprints
A display-ready pallet simplifies traditional fulfillment by arriving pre-filled and securely attached to a transit base13. Instead of shipping loose brown boxes that require a store clerk to manually stock shelves for hours, this basic format allows a standard pallet jack or forklift to move the entire promotional campaign directly into the retail aisle14 quickly and efficiently.
To achieve this easy placement, the merchandising footprint must align with standard retail space allocations. Large, full-size floor displays often face pushback because a 48×40 inch base15 takes up too much physical aisle space. By sizing the structure down to a half-pallet or a quarter-pallet footprint, multiple brand campaigns can easily fit into narrow checkout zones, ensuring immediate, frictionless point-of-sale execution for your promotional goods.
| Pallet Format | Physical Footprint | Retail Aisle Placement |
|---|---|---|
| Full Size GMA | 48×40 inches16 | Massive Action Alleys |
| Half Pallet | 48×20 inches17 | Standard End-Caps |

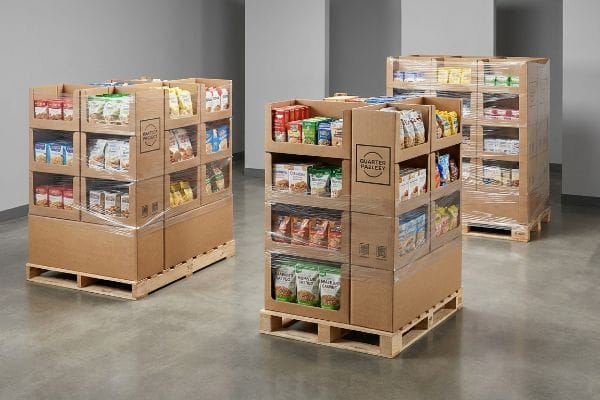

| Quarter Pallet | 24×20 inches18 | High-Traffic Intersections |
Forcing overworked retail clerks to manually handle loose inventory severely cripples speed-to-market and triggers placement rejection. Scaling high-volume campaigns into quarter-pallet geometries avoids these bottlenecks.
🛠️ Harvey's Desk: Are big-box buyers actively rejecting your merchandising campaigns because your spatial footprint violates their rigid aisle clearance mandates? 👉 Get a Free Fractional Geometry Audit ↗ — No account managers in the middle. You talk directly to structural engineers.
What Is a Corrugated Pallet?
Sustainable global supply chains are aggressively phasing out raw wood.

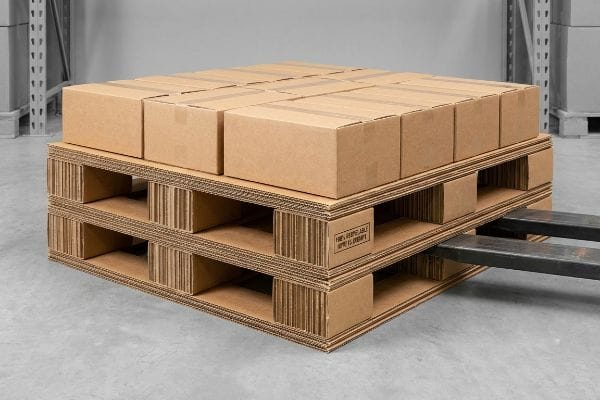

A corrugated pallet is a highly engineered, fully recyclable shipping platform constructed entirely from heavy-duty fluted paperboard. Designed as an eco-friendly alternative to traditional wooden bases, it eliminates international fumigation requirements, severely reduces gross shipping weight, and seamlessly integrates into automated global warehouse supply chains.
Transitioning from heavy timber to precision-cut paperboard requires a deep understanding of international shipping compliance and dead-weight reduction.
The Sustainable Mechanics of Paper-Based Transport
Corrugated pallets replace rough, splintering timber with dense, compression-tested blocks of laminated paper flutes, glued seamlessly to a rigid triple-wall paperboard deck. These engineered bases must mimic the precise structural entry height required by standard industrial forklifts, maintaining a strict 4-inch (101.6 mm) vertical clearance gap19 under extreme dynamic loads. Because they consist entirely of homogenous paper fiber, they completely bypass the catastrophic legal compliance hazards20 that routinely paralyze international freight operations.
When procurement gambles on cheap, untreated wooden bases, they slam directly into rigid ISPM 15 (International Standards for Phytosanitary Measures) regulations21, which mandate toxic methyl bromide fumigation to kill invasive pests. I recently audited a supply chain where a client's untreated wood pallets triggered an immediate border quarantine, resulting in a devastating six-figure write-off. Corrugated paper bases completely bypass this toxic legal liability22. By mathematically stripping away the heavy timber, the gross dead weight of a shipping container drops drastically, allowing engineers to cram significantly more high-density merchandise into a 40HQ container before legally triggering catastrophic highway weight limits.
| Base Material | Fumigation Requirement | Freight Dead Weight |
|---|---|---|
| Untreated Wood | Immediate Customs Hold | Heavy (45 lbs per unit) |
| ISPM 15 Wood | Chemically Treated | Heavy (40 lbs per unit) |
| Corrugated Paper | 100% Exempt23 | Ultra-Light (12 lbs per unit)24 |
Navigating the toxic compliance liabilities of chemically treated export wood needlessly threatens your logistics timeline. Transitioning to heavy-duty paper-based platforms guarantees smooth border clearances and maximized freight capacity.
🛠️ Harvey's Desk: Are heavy wooden shipping bases secretly inflating your ocean freight costs and exposing your logistics chain to sudden border holds? 👉 Claim Your Free Freight Density Audit ↗ — I review every structural file personally within 24 hours.
Conclusion
Preventing your heavy checkout merchandise from collapsing under its own physical payload requires strictly aligning fractional pallet geometry with dynamic freight physics. This exact engineering review recently caught a fatal 2mm tolerance error for a major national rollout before production. Instead of hoping your unverified structural footprint survives the ocean transit, let me personally run your structural files through a Free Master Carton BCT Audit ↗ to mathematically guarantee your displays arrive on the big-box floor perfectly intact.
