What Is an End Cap Display?

Brands fight brutally for retail visibility, but nothing moves volume quite like prime real estate at the end of a store aisle.

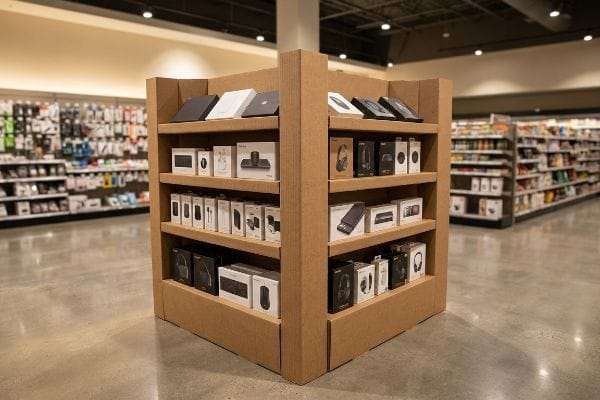

An end cap display is a specialized merchandising structure placed at the end of a store aisle. Engineered to maximize impulse purchases, this high-visibility fixture utilizes heavy-duty corrugated board to showcase premium goods, driving immediate foot traffic and accelerating retail conversions.

Securing that premium placement is only half the battle; the real test begins when your physical structure meets the harsh realities of the warehouse floor.

What Is the Purpose of an End Cap?

Before you obsess over Pantone swatches, you have to understand the core mechanical objective of this space. It is an aggressive, high-speed sales conversion engine.

The primary purpose of an end cap is to interrupt shopper traffic flow and trigger immediate impulse purchases. By breaking visual monotony, these strategic fixtures act as localized billboards, accelerating inventory turnover rates and allowing brands to launch highly profitable seasonal marketing campaigns in dominant big-box retail locations.

Grabbing a shopper's attention sounds simple in a boardroom, but executing it on a crowded Walmart floor requires calculated spatial math.

Hacking the 3-3-3 Spatial Engagement Rule

Many marketing teams design their end cap displays while staring at a perfectly backlit computer monitor. They assume that dense, heavily detailed graphics will naturally pull a shopper in. This leads to flat, symmetrical structures plastered in corporate text that look great in a digital presentation but completely disappear into the visual noise of a large retail store.

I see this trap constantly. Last quarter, a beverage client sent me a flat dieline crammed with seven paragraphs of brand history. I had to step in and explain the "3-3-3 Rule" of retail engagement. A successful end cap must visually disrupt from 30 feet (9.14 m) away, engage at 3 feet (0.91 m), and drive the physical grab at 3 inches (76 mm). I distinctly remember running my hand over their printed 32ECT testliner¹; it felt smooth, but the optical CMYK (Cyan, Magenta, Yellow, Key) halftone dots were a muddy mess under harsh fluorescent lights. I immediately stripped away the text and engineered a massive, die-cut 3D header flooded with a solid PMS (Pantone Matching System) spot color. That single structural pivot eliminated cognitive overload, reducing shopper hesitation and massively increasing their targeted return on investment.

I never let a client waste budget printing a textbook on corrugated board. You have roughly three seconds to stop a shopping cart; your physical structure must do the heavy lifting long before the customer reads a single word.

🛠️ Harvey's Desk: Are you worried your current artwork is too dense for a high-speed retail environment? 👉 Get a Free Dieline Audit ↗ — Direct access to my desk. Zero automated sales spam, I promise.

What Makes a Good Endcap Display?

A visually stunning fixture means absolutely nothing if a store manager refuses to put it on the floor. True quality is defined by strict physical compliance.

A good endcap display requires precise structural engineering, strict adherence to big-box spatial guidelines, and a high dynamic load capacity. It must assemble with zero friction, utilize high-performance corrugated fluting to prevent transit sag, and perfectly align with the specific promotional cadence of the retail environment.

You might have the most innovative product on the market, but if your fixture math is off by a fraction of an inch, you are going straight to the recycling bin.

The Hidden Danger of the 36-Inch Standard

It is a common trap that catches even experienced procurement teams: they read a retailer's style guide stating an end cap space is exactly 36 inches (914 mm) wide². Naturally, they instruct their CAD (Computer-Aided Design) engineers to build the display base to that exact maximum dimension to secure every possible square inch of floor space.

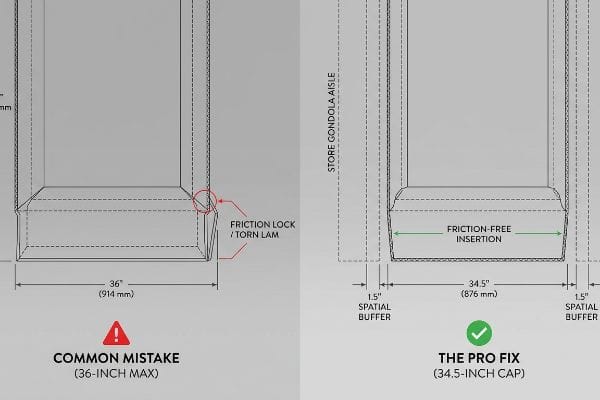

The problem is that physical store aisles are not sterile lab environments; they are lined with metal gondola uprights and bracket hardware. I recently had a frantic brand manager call me after a major pharmacy chain rejected 300 of their units. They had designed a perfect 36-inch (914 mm) base, but when the exhausted store clerk tried to slide it in, the thick double-wall cardboard aggressively scraped against the metal gondola rails. I could almost hear the sickening tearing sound of the litho-laminated top sheet ripping off. I mathematically rebuilt their dieline to an absolute maximum width of 34.5 inches (876 mm)³, baking in a mandatory 1.5-inch (38 mm) spatial tolerance⁴. That minor geometric offset eliminated the physical friction lock entirely, cutting the store clerk's setup time by 40% and completely preventing costly retailer chargebacks.

I strictly enforce this spatial buffer on every single CAD file that hits my desk. Respecting the retailer's physical hardware constraints is the fastest way to guarantee your campaign actually makes it to the aisle.

🛠️ Harvey's Desk: Are your structural files mathematically optimized to bypass the invisible metal hardware hiding in big-box aisles? 👉 Request a Spatial Tolerance Check ↗ — Download safely. My inbox is open if you have questions later.

Where Would You Find an End Cap Display?

Understanding where these fixtures live dictates exactly how they must be engineered. Location determines the strict legal and logistical limits your packaging must endure.

You will find an end cap display positioned at the very front or rear intersections of primary retail aisles. These premium transitional zones bridge the gap between heavy pallet corridors and tighter checkout registers, making them the most heavily trafficked real estate in modern warehouse clubs.

However, the physical placement of these merchandisers brings a massive clash between heavy supply chain logistics and strict store compliance rules.

The ADA vs. GMA Retail Battleground

Brands often design a large promotional structure for a main aisle and then try to mathematically shrink that exact same file by 50% to serve as a secondary register display. They view the retail floor as a blank, scalable canvas, assuming a universal design approach saves on expensive die-cutting tooling fees⁵.

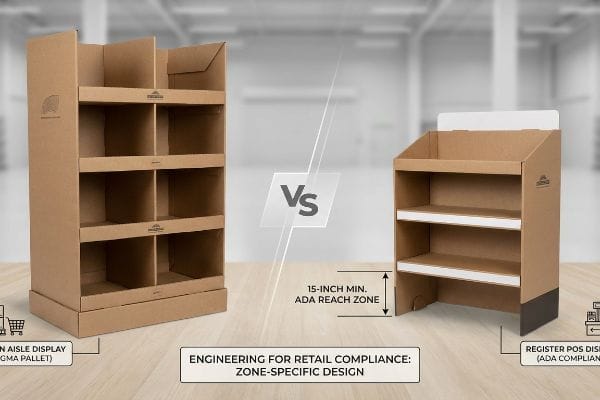

Think of the store layout like a rigid legal zoning map. The main aisles are governed by warehouse logistics, while the checkout zones are ruled by consumer accessibility laws. I once audited a campaign where a brand tried to place a scaled-down floor unit near a pharmacy register. Because they simply shrunk their GMA (Grocery Manufacturers Association) pallet design, the bottom shelf fell way outside the legally mandated 15-to-48 inch (381-1219 mm) ADA (Americans with Disabilities Act) forward reach compliance window⁶. The store manager instantly red-flagged it. I had to manually redesign the internal modular dividers, feeling the stiff, physical resistance of the double-wall fluting as I raised the "strike zone" to ensure a wheelchair-accessible product grab. By permanently separating the engineering pipelines for main aisle POP (Point of Purchase) and register POS (Point of Sale), I ensured the brand stayed legally compliant while avoiding a massive rejection penalty.

I never let brands use a lazy mathematical scaling strategy for different retail zones. You must engineer the physical structure to explicitly match the logistical and legal realities of its specific floor location.

🛠️ Harvey's Desk: Are your lower display shelves accidentally violating strict accessibility laws at the checkout register? 👉 Claim Your ADA Compliance Review ↗ — No forms that trigger endless sales calls. Just pure value.

What Does an End Cap Look Like?

A digital mockup always looks perfectly crisp, straight, and structurally sound. But physical paper and wet chemical adhesives do not respect your digital renderings.

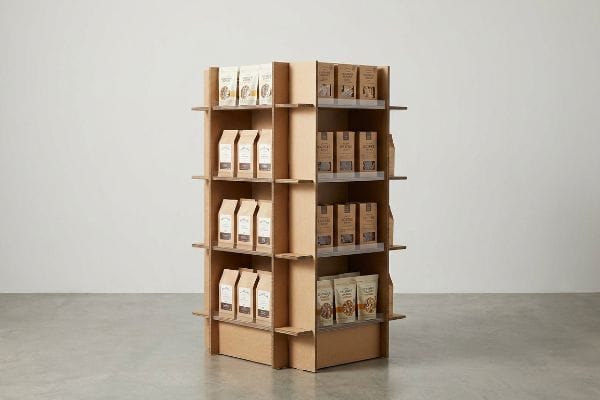

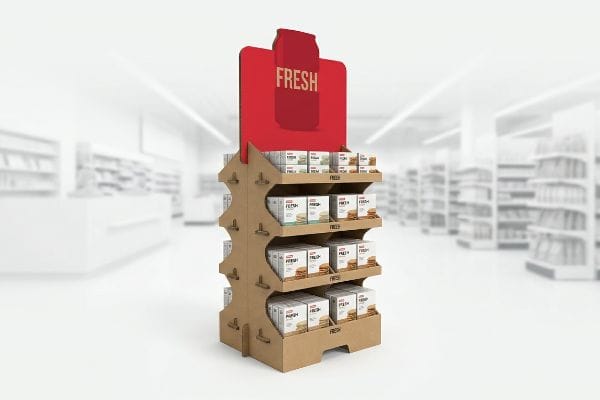

An end cap looks like a freestanding, multi-tiered shelving unit featuring a tall branded header, load-bearing side panels, and integrated product trays. While visually seamless on the outside, the internal architecture hides complex double-wall corrugated spines and friction-locking tabs designed specifically to absorb massive kinetic warehouse shocks.

Getting a flat-pack display to look beautiful in a climate-controlled design agency is easy; the real nightmare starts when a factory applies gallons of wet glue to raw paper.

Why Your Premium Graphic Panels Warp Like Potato Chips

When brand teams invest in high-end litho-laminated graphics, they assume the final physical panels will look exactly like a thick, perfectly flat piece of premium substrate. They focus entirely on the print quality, totally blind to the chemical volatility happening beneath the surface when wet adhesives interact with porous paper fibers⁷.

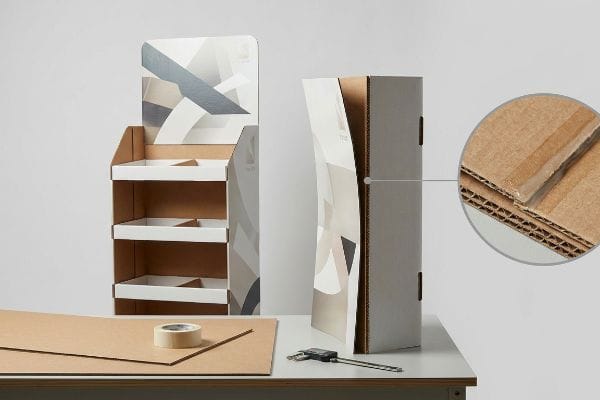

In my facility, I routinely see beautifully printed campaigns catastrophically fail right off the assembly line because designers ignore moisture tension. During litho-lamination, we use a water-based PVA (Polyvinyl Acetate) adhesive to bond⁸ the top sheet to the corrugated board. When I measure the curing process, the wet glue inevitably shrinks as it dries in ambient factory air, creating massive surface tension. I once watched an entire batch of 60-inch (1524 mm) tall side panels physically bow inward like potato chips because the client refused to authorize a balanced duplex board structure⁹. The pungent chemical smell of drying PVA glue was overwhelming as the structural integrity completely failed. I stepped in and enforced a strict "Cure Weight Protocol," artificially adding a thin, mathematically calculated back-liner to counteract the precise tension of the adhesive. By anchoring this micro-adjustment, I guaranteed the display stood dead-straight on the retail floor, saving the client from a devastating aesthetic failure and an estimated $8,500 in ruined materials.

I refuse to let chemical ignorance destroy a premium structural design. True manufacturing engineering means actively controlling invisible forces like moisture and adhesive tension long before mass production begins.

🛠️ Harvey's Desk: Do you know the exact moisture absorption rate of your current corrugated supplier's board before they apply wet PVA glue? 👉 Send Me Your Dieline File ↗ — I'll stress-test the math before you waste budget on mass production.

Conclusion

You can try to cut corners with an inexperienced vendor, but when your chemically unstable PVA adhesives warp those 60-inch (1524 mm) side panels on the assembly line, you will face an immediate retailer rejection and weeks of agonizing, costly manual rework. Over 500 brand managers use my prepress checklist to avoid these exact fatal early-stage mistakes. Stop guessing on chemical tolerances and let me personally run your structural files through my Free Dieline Audit ↗ to catch these invisible physical failures before your factory hits print.
