What Are the Key Steps in the Cardboard Display Manufacturing Process?

Getting a retail display from a screen to the store floor feels like navigating a minefield. You need a frictionless process to avoid costly structural failures.

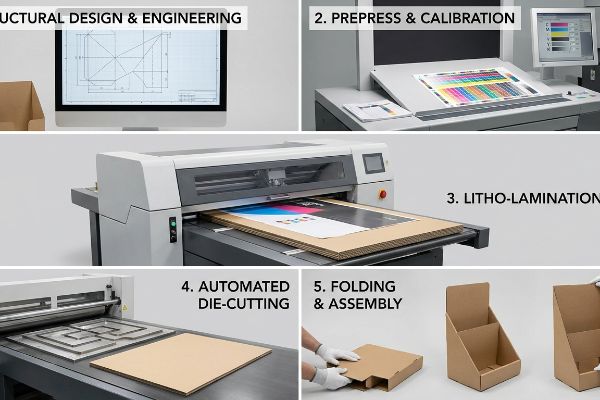

The cardboard display manufacturing process requires precise structural engineering, prepress calibration, litho-lamination, automated die-cutting, and sequential folding. Every phase demands exact mathematical tolerances. Skipping a single validation check during these steps inevitably causes catastrophic transit failures or immediate rejection at strict big-box retail receiving docks.

Let's break down exactly how these raw materials transform into high-performance retail merchandisers, and where most brands accidentally derail their physical campaigns.

How Is Cardboard Made Step by Step?

You might assume printing and cutting are the only major steps, but combining the materials correctly is where most structural integrity is either built or permanently destroyed.

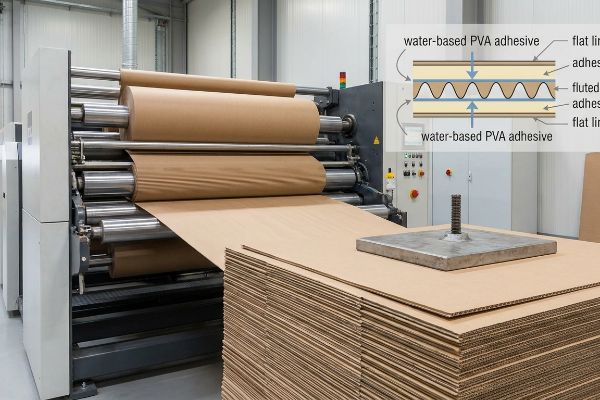

Making cardboard step by step involves fluting raw paper, applying water-based adhesives, and bonding it between flat linerboards. This continuous corrugation cycle creates the distinct structural arches that provide dynamic compression strength, ensuring your final merchandisers survive heavy ocean freight and rough retail warehouse handling.

The basic recipe sounds simple, but the physical chemistry involved on the production floor introduces immediate kinetic risks.

Surviving the PVA Moisture Warp Distortion

Even veteran designers often overlook the blind spot of lamination chemistry. They assume that mounting a high-quality printed top-sheet to a rigid B-flute corrugated board¹ results in a perfectly flat display panel. In theory, applying glue to paper is a straightforward mechanical bond that should dry evenly without altering the substrate's geometric layout.

The factory reality is much more volatile. The litho-lamination process uses a wet, water-based PVA (Polyvinyl Acetate) adhesive². When I run a batch through the gluer, the porous linerboard instantly absorbs that moisture. If I don't strictly control the drying phase before these ship to a high-humidity US environment like Texas, the shrinking PVA creates massive surface tension³. The entire 60-inch (1524 mm) side panel will warp and bow inward like a potato chip. I've watched clerks struggle to assemble these curved panels on the floor, battling the stiff resistance of the warped board until the retaining tabs physically tear. To fix this, I engineered a strict cure weight protocol, stacking wet boards under exact dead-weight pressure for 24 hours. This flat-cure prevents assembly friction, saving co-packers an estimated 30% in manual labor time and keeping your rollout schedule intact.

I refuse to let rushed curing times compromise a structural base. Taking an extra 24 hours to mathematically press the boards guarantees your display stands perfectly plumb under harsh fluorescent store lights.

🛠️ Harvey's Desk: Are your side panels bowing and causing assembly headaches on the packing line? 👉 Request a Structural Audit ↗ — Direct access to my desk. Zero automated sales spam, I promise.

What Machine Is Used to Make Cardboard?

Industrial cutting tables and offset presses power the assembly line, but these heavy-duty machines are completely useless if they don't understand the digital instructions you feed them.

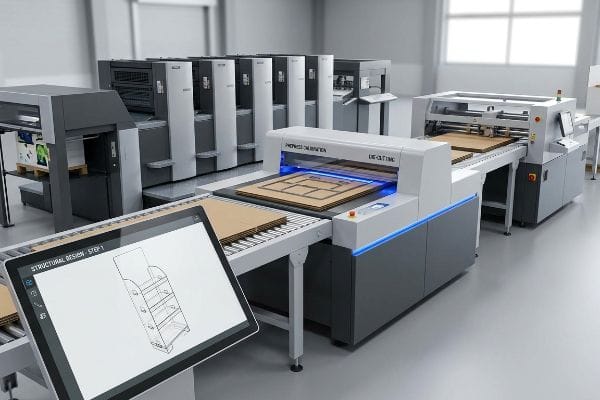

The machines used to make cardboard displays include industrial corrugators, automated lithographic printing presses, and digital cutting tables. These heavy-duty manufacturing systems operate using highly specific vector data, translating precise digital spot colors directly into physical blade movements and exact crease depths for flawless assembly.

Knowing the hardware is great, but understanding how to properly speak to these machines is the real secret to avoiding massive production bottlenecks.

The Spot Color Tooling Command Trap

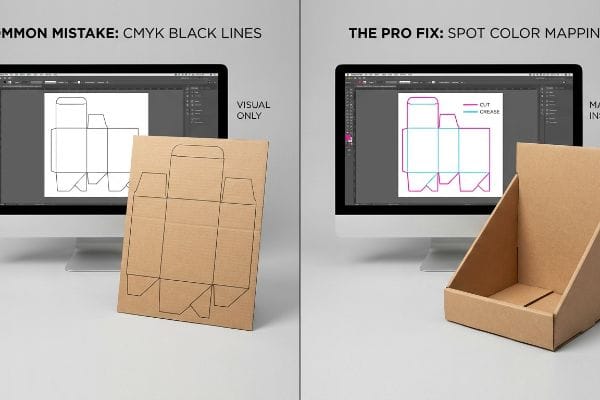

A common trap that catches even experienced procurement teams is assuming that visual lines on a PDF automatically tell the machine where to cut. They submit dielines using standard CMYK (Cyan, Magenta, Yellow, Key/Black) black strokes⁷ to outline the physical structure of the POS (Point of Sale) merchandiser. Visually, it looks like a complete, ready-to-manufacture blueprint.

But automated CNC (Computer Numerical Control) routing tables and laser die-board burners do not read visual black lines; they require absolute spot color mappings⁸. When a file arrives with standard black strokes, the machine's prepress software merges those cut lines straight into the artwork layer. The press prints a beautiful box with visible black outlines but makes zero physical cuts. I once watched an entire prototype batch stall because the cutting head hovered uselessly, producing the loud, hollow whir of a spindle cutting thin air instead of raw paperboard. Now, I intercept and mandate an absolute spot color protocol—100% Magenta for "Cut" and 100% Cyan for "Crease." This translates digital intent into razor-sharp mechanical execution, preventing misprints that trigger massive retailer chargebacks.

I always separate structural math from surface aesthetics in the prepress stage. Forcing strict color mapping ensures the blades engage the substrate flawlessly, keeping your artwork pristine and your production schedule running smoothly.

🛠️ Harvey's Desk: Does your current printer complain about unreadable vector paths and delayed prototyping? 👉 Get a Prepress File Check ↗ — Download safely. My inbox is open if you have questions later.

Is Cardboard Natural or Man-Made?

Buyers love to push for maximum eco-friendliness, but pushing raw paper fibers past their physical limits often turns a sustainable campaign into a logistics nightmare.

Yes. Cardboard is natural because it originates from renewable cellulose wood fibers, but the modern engineering process is highly man-made. Manufacturers chemically repulp and mechanically restructure these organic fibers into corrugated testliner, balancing sustainable environmental mandates with strict dynamic load capacities required for global logistics.

The origin of the material is organic, but treating recycled paper like an infinite resource is a dangerous oversight in structural engineering.

The Fiber Exhaustion Limit in Recycled Boards

Procurement teams striving for maximum sustainability often mandate 100% recycled testliner for heavy-duty retail merchandisers, assuming it possesses the exact same physical integrity as fresh board¹². It seems like a perfect win-win: satisfying corporate environmental quotas while maintaining standard structural packaging capacities.

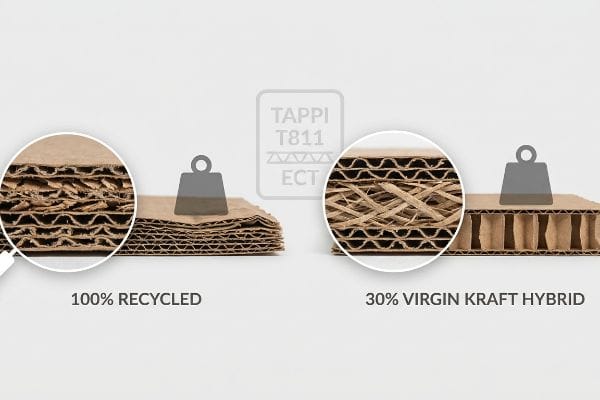

Think of paper fibers like a rubber band; every time you stretch and reuse it, it permanently loses elasticity. During the repulping process, cellulose fibers physically shorten. After five to seven recycling cycles¹³, these fibers suffer total mechanical exhaustion. If I put a fully recycled tray under a TAPPI (Technical Association of the Pulp and Paper Industry) T811 Edge Crush Test (ECT)¹⁴, I can actually hear the dry, microscopic crackle as the exhausted flutes instantly collapse under the pressure. To survive heavy double-stacked ocean freight, I enforce a hybrid material mandate, injecting a precise 30% ratio of virgin kraft material directly into the load-bearing flutes. This strategic introduction of long, fresh fibers instantly restores dynamic compression strength, ensuring your pallets arrive fully intact while safely passing strict big-box sustainability audits.

I never compromise base stability for a marketing claim. Blending fresh kraft fibers with recycled pulp is the only way I can guarantee your heavyweight goods survive the grueling journey from my factory to the shelf.

🛠️ Harvey's Desk: Are your eco-friendly displays buckling under the weight of your actual merchandise? 👉 Claim Your Material Strategy Audit ↗ — No forms that trigger endless sales calls. Just pure value.

What Is Corrugated Box Manufacturing?

Designing a flat graphic is one thing, but converting that art into a three-dimensional, load-bearing structure requires relentless attention to precise mechanical tolerances.

Corrugated box manufacturing translates flat material into geometric structures through automated cutting, scoring, and folding operations. This high-speed conversion process fundamentally relies on specific bend allowances to accommodate board thickness, transforming raw substrates into rigid, load-bearing master cartons optimized for safe product distribution and retailing.

But knowing the theory isn't enough when the machines start running and flat cardboard actually has to bend around a corner.

The Caliper Compensation Trap in Production

Graphic designers frequently build interlocking tabs and folding slots in their CAD (Computer-Aided Design) software at the exact same width as the mating panel. They assume a one-inch (25.4 mm) tab simply slides into a one-inch slot, trusting the flat digital blueprint to translate perfectly into the physical realm.

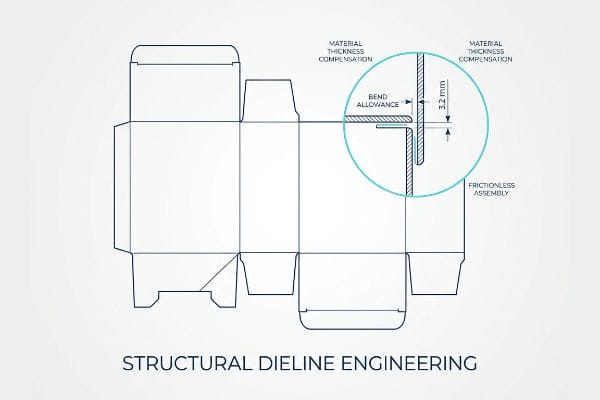

Getting one display to stand up in a lab is easy, but here is the harsh reality when you ship 500 of them to a bustling co-packer. Corrugated board has physical mass. When a 3.17 mm (0.12 inches) thick B-flute panel¹⁸ folds 90 degrees, it physically consumes material around the outer radius. If the receiving slot on the dieline isn't widened to compensate, the geometry fails. During early prototype testing in my facility, I often see standard files fail this basic test; the store clerk ends up sweating and forcing a misaligned tab, resulting in an ugly, torn paper edge that ruins the brand's aesthetic. By mathematically programming a specific bend allowance of exactly 3.2 mm (0.12 inches)¹⁹ into every fold, I break the friction lock. This ruthless structural correction ensures frictionless assembly, dropping co-packing times by an estimated 42 seconds per unit and protecting your labor budget.

I always rebuild flat incoming dielines to account for real-world material thickness. Engineering these micro-clearances directly into the structural file is how I prevent chaotic, tape-covered assembly disasters on the store floor.

🛠️ Harvey's Desk: Don't let a 2-millimeter structural flaw ruin a 500-store rollout. 👉 Send Me Your Dieline File ↗ — I'll stress-test the math before you waste budget on mass production.

Conclusion

You can choose the cheapest manufacturing vendor available, but when a graphic designer's uncalibrated color file merges with uncompensated 3.17 mm (0.12 inches) B-flute tabs on the assembly line, the resulting torn paper and warped PVA side panels will slow down co-packing by an estimated 30% and completely wipe out your campaign's profit margin. Over 500 brand managers use my prepress checklist to avoid these exact fatal early-stage mistakes. Stop guessing on substrate tolerances and let me personally run your files through my Free Dieline Pre-Flight Audit ↗ to catch expensive mechanical errors before mass production begins.
