Key Considerations in Designing Your POP Display

Designing a point-of-purchase unit requires balancing strict retailer compliance, consumer psychology, and supply chain physics.

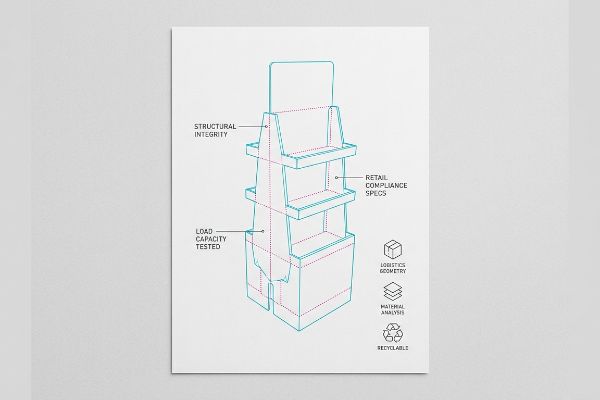

Designing a POP display requires integrating structural integrity, visual merchandising, and strict retailer compliance. The process encompasses evaluating packaging materials, analyzing logistics geometry, and testing dynamic load capacities to ensure the final merchandiser survives transit impacts and effectively drives impulse consumer purchases on the retail floor.

Many brand founders view these structures simply as folded cardboard, but entering a North American retail environment demands precise engineering. Let's break down the mechanics behind a successful rollout.

What Are the Key Factors to Consider When Designing?

Your initial structural choices dictate whether your merchandiser reaches the sales floor or gets rejected at the receiving dock.

The key factors include strict spatial compliance, dynamic load capacity, and distinct retailer guidelines. Evaluating these physical elements ensures the engineered unit strictly aligns with logistical requirements, prevents supply chain friction, and successfully navigates both heavy warehouse stacking limits and mandatory store aisle dimensions.

It is tempting to design one universal structure to save money, but that assumption quickly collides with retail reality.

Navigating Spatial Constraints and Retail Frameworks

Even experienced procurement teams often try to scale a massive floor display down by 50% to create a point-of-sale counter unit. They assume that shrinking the dieline mathematically preserves the structural integrity¹ and aesthetic proportions. This generic approach treats retail zones as interchangeable environments.

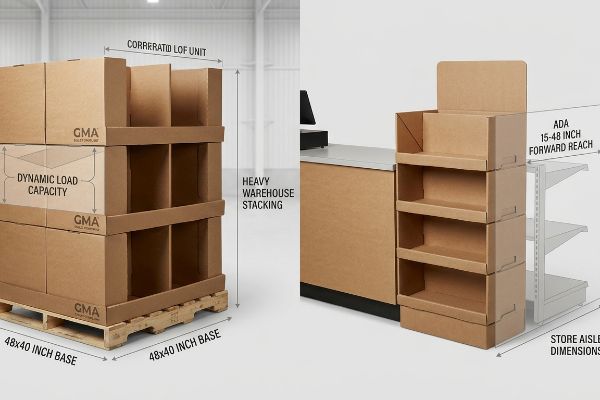

I see this trap constantly when evaluating incoming CAD (Computer-Aided Design) files for big-box rollouts. You cannot just shrink a floor unit, because those are anchored to the 48×40 inches (121.9×101.6 cm) GMA pallet limit² for heavy warehouse logistics. Conversely, counter units strictly answer to the ADA 15-48 inches (38.1-121.9 cm) forward reach compliance window³. When clients force a "shrink-to-fit" crossover, I end up listening to the frustrating scrape of heavy B-flute cardboard buckling under uneven counter weights. By permanently separating the engineering pipelines for floor and counter zones, I eliminate the friction that slows down co-packing lines by an estimated 30%, ensuring the store manager accepts the unit immediately.

I refuse to engineer a hybrid crossover if it violates strict aisle regulations. By forcing specialized dimensions for each specific zone, I protect your campaign from costly chargebacks and ensure frictionless store-level execution.

🛠️ Harvey's Desk: Are your current floor dimensions dangerously close to violating aisle compliance? 👉 Request a Spatial Audit ↗ — Direct access to my desk. Zero automated sales spam, I promise.

What Are the Common Mistakes with POP Displays?

Overlooking mechanical tolerances during the artwork phase is the fastest way to derail a mass production schedule.

The common mistakes include insufficient bleed margins, poor moisture compensation, and generic material downgrades. Fixing these early prevents raw edge exposure, stops structural buckling during ocean transit, and entirely eliminates the severe assembly friction that frequently halts high-speed automated co-packing lines during final fulfillment.

Graphic designers are trained to make things look beautiful on a screen, but digital pixels do not behave like physical paper.

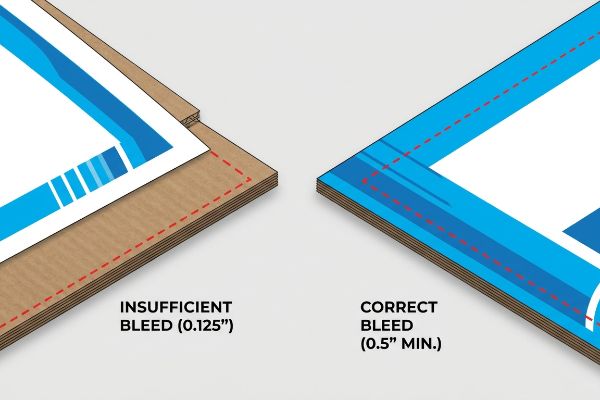

The Litho-Lamination Bleed Trap

Most design agencies apply a standard commercial print bleed of 0.125 inches (3.17 mm)⁷ to their structural packaging files. They operate under the assumption that large-format corrugated printing holds the same tight tolerances as a simple business card or folding carton. This theoretical approach ignores the physical violence of automated board mounting.

I always check the dieline margins first, because litho-lamination involves physically gluing printed top-sheets onto thick corrugated testliner at high speeds. That wet PVA (Polyvinyl Acetate) glue process inherently creates a wider mechanical shift⁸. When designers use a standard narrow bleed, I watch the die-cutter slice through the board and leave "flashing"—ugly strips of raw brown cardboard exposed right on the front folded edge. I strictly enforce a minimum 0.5-inch (12.7 mm) bleed margin⁹ past the physical cut line, forcing the artwork to wrap completely around every exposed fold, completely wiping out the risk of a visual defect that triggers a total retailer rejection.

I reject incoming prepress files that fail this bleed threshold because catching it on my monitors takes five minutes, but fixing a short-sheeted production run destroys your entire marketing budget.

🛠️ Harvey's Desk: Not sure if your agency factored in the correct mechanical shift for your top-sheet? 👉 Get Your Bleed Margins Checked ↗ — Download safely. My inbox is open if you have questions later.

What Are the Key Features of a Good Display?

A high-performing unit must balance structural stability with aggressive visual merchandising tactics that intercept foot traffic.

The key features prioritize high product visibility, asymmetrical structural spacing, and dynamic visual disruption. Integrating these precise physical elements actively pulls shopper attention from a distance while providing enough mathematical clearance to permanently prevent paperboard tearing during aggressive in-store retail restocking operations by store clerks.

Engineering a box that simply holds weight is the bare minimum; the true challenge is engineering a structure that actively sells the product.

Mastering the Spatial Engagement Continuum

Brand marketing teams often design their merchandisers strictly for up-close viewing on backlit computer monitors. They fill every available square inch with dense text and symmetrical product grids, hoping to maximize the amount of information the consumer absorbs. This strategy completely ignores the physical reality of how rushed shoppers navigate harsh, fluorescent-lit store aisles¹³.

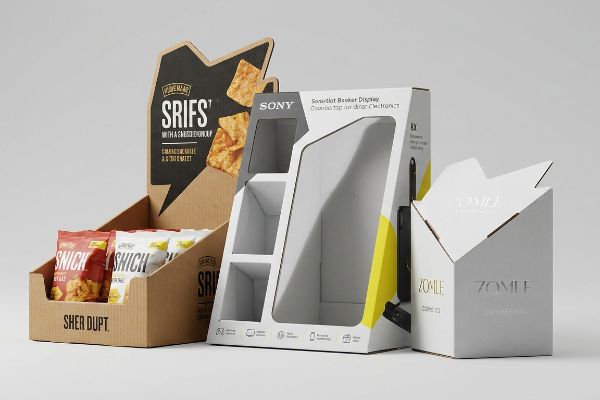

Think of your display like a highway billboard; if people cannot read it at 65 miles per hour, the details are useless. I always advise brands to follow the 3-3-3 rule of retail engagement¹⁴, ensuring the structure captures attention from thirty feet, engages interest at three feet, and drives conversion at three inches. When a brand tries to print seven paragraphs of tiny text on a header, I watch rushed consumers walk right past it, overwhelmed by the visual noise. I engineer aggressive die-cut shapes and mandate a cut front retaining lip for 85% visibility¹⁵, capturing the consumer's psychological trigger in a three-second interaction window and dramatically improving the campaign's overall conversion rate.

I strip away secondary marketing copy because cognitive overload kills impulse sales. By engineering one massive structural focal point, I force the human eye to engage exactly where you need it.

🛠️ Harvey's Desk: Is your current artwork design causing a visual traffic jam on the physical shelf? 👉 Claim Your Layout Review ↗ — No forms that trigger endless sales calls. Just pure value.

What Are the 5 Steps in Creating a Display?

Moving from a conceptual sketch to a fully loaded retail pallet requires navigating intense mechanical physics.

The 5 steps include conceptual layout mapping, precise caliper compensation engineering, prepress color calibration, structural transit testing, and final mass assembly. Following this rigorous operational sequence mathematically bridges the gap between digital artwork and physical supply chain physics, permanently preventing catastrophic material buckling.

But knowing the theory isn't enough when the machines start running and paper fibers begin to stretch.

Why Standard Dielines Fail on the Factory Floor

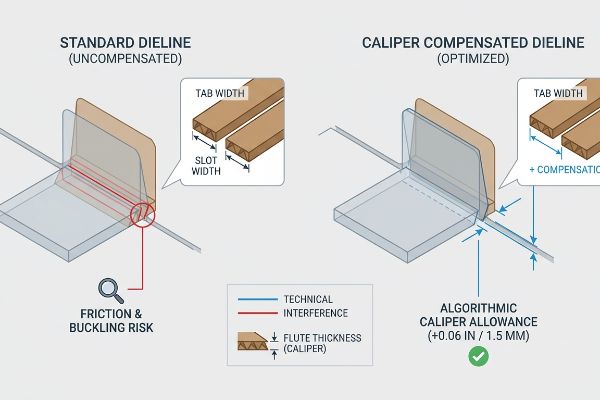

A common but dangerous assumption during the structural workflow is treating digital lines as infinitely thin elements¹⁸. Freelance designers frequently build interlocking tabs and folding slots at the exact same width as the mating panel in their illustration software. They assume that if tab A fits perfectly into slot B on the monitor, the final assembly will slide together effortlessly.

In my facility, I routinely see this theoretical assumption cause massive supply chain bottlenecks when the physical substrate is introduced. When thick E-flute folds 90 degrees, it physically consumes about 0.06 inches (1.5 mm) of material¹⁹ due to the outer radius bend. If I don't widen the receiving slot in the dieline to compensate for that consumed caliper, the co-packing team has to forcefully jam the tabs together, and I can hear the sickening crunch of the internal flutes permanently collapsing under the pressure. I mathematically rebuild these slots using parametric bend allowances, guaranteeing the pre-filled units assemble with zero friction, which drops assembly time by nearly 45 seconds per unit and saves thousands in manual labor fees.

I refuse to push a file to the cutting tables without verifying the bend allowance. Calculating the physical thickness before production is the only way to prevent your co-packer from destroying the batch.

🛠️ Harvey's Desk: Do you know if your current dieline slot widths account for the exact flute caliper of the board? 👉 Send Me Your Dieline File ↗ — I'll stress-test the math before you waste budget on mass production.

Conclusion

You can choose a vendor based purely on raw unit cost, but when an uncompensated fold crushes the internal flutes and slows down your co-packing assembly line by an estimated 30%, that initial saving completely wipes out your project's profit margin. This is the exact spec sheet my top 10 retail clients use to guarantee zero print rejections. Stop guessing on dimensional tolerances and let me personally evaluate your structural mechanics through my Free Dieline Audit ↗ to catch fatal friction points before mass production begins.
