How Do Manufacturers Ensure the Structural Integrity of Cardboard Displays?

I've seen bad cardboard structures ruin massive retail rollouts, but smart engineering prevents these disasters. Staring at a collapsed display in a humid warehouse is a nightmare you easily avoid.

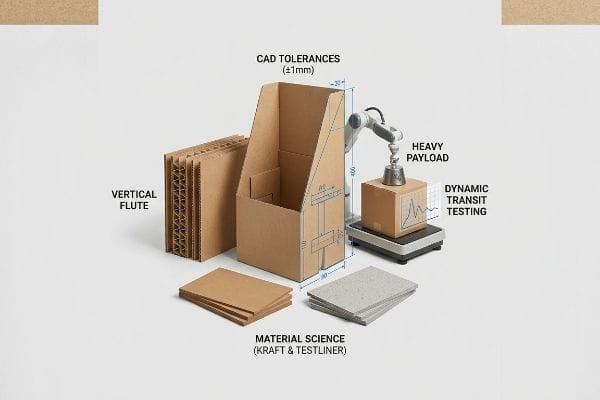

Manufacturers ensure the structural integrity of cardboard displays by enforcing vertical flute orientation, blending virgin kraft paper with recycled testliner, and applying precise CAD (Computer-Aided Design) tolerances. This dual focus on material science and dynamic transit testing prevents catastrophic box failures under heavy retail merchandise payloads.

Let's walk through the actual factory physics that keep these units standing tall under severe big-box retail conditions.

What Is the Structure of Cardboard Material?

Understanding raw material anatomy is your first line of defense against crushed retail displays.

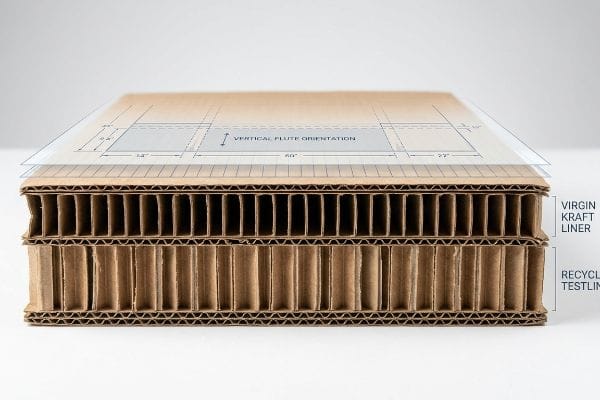

The structure of cardboard material consists of a fluted corrugated medium sandwiched between two flat paperboard liners. This geometric architecture creates a rigid, lightweight board that absorbs kinetic shocks and distributes vertical weight, making it the primary substrate for heavy-duty retail merchandisers and global shipping logistics.

Knowing the basic anatomy is helpful, but applying it incorrectly on the production floor is where campaigns fall apart.

Mastering Grain Direction for Retail Stacking

Beginners often focus entirely on the thickness of the board, assuming a thicker profile automatically guarantees better support. They treat the substrate like a solid block of wood rather than a directional engineering material¹. This leads to arbitrary die-cutting layouts where the printed artwork dictates the cut, completely ignoring the physical alignment of the internal paper waves.

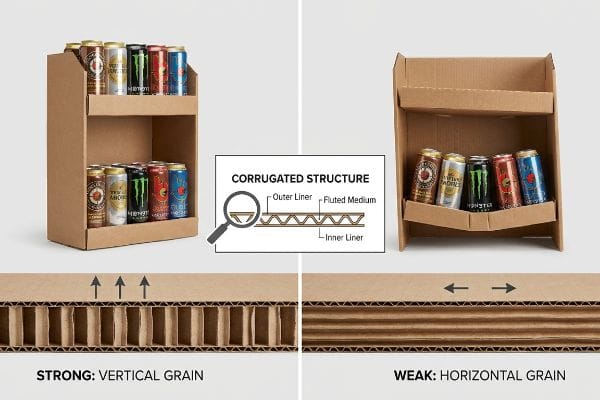

The internal flutes of corrugated board act like miniature structural columns². If you orient those columns horizontally to save space on the printing press, the display loses its vertical BCT (Box Compression Test) strength³. I see this rookie trap constantly when a rushed store clerk loads heavy cans onto a horizontally grained shelf; you hear the distinct, sickening crunch of collapsing paper fibers, and the entire tier visibly sags. By simply rotating the dieline 90 degrees in our prepress software so the grain runs perfectly vertical, I align the physics. This zero-cost adjustment drastically boosts the dynamic load capacity, entirely preventing bottom-tier collapse and avoiding the dreaded scenario of a store manager rejecting your inventory.

I never let an artwork file dictate structural physics. Aligning the grain vertically is a non-negotiable standard that instantly protects your brand equity without adding a single cent to the manufacturing cost.

🛠️ Harvey's Desk: Not sure if your current display layout is fighting the paper grain? 👉 Get a Free Structural Audit ↗ — Direct access to my desk. Zero automated sales spam, I promise.

What Makes Corrugated Cardboard Strong?

True strength comes from the microscopic paper fibers, not just the visible arch geometry.

Corrugated cardboard is made strong by the rigid geometric arch of its internal fluting and the density of its cellulose fibers. When subjected to top-load pressure, these glued paper arches transfer kinetic energy outward, preventing structural buckling and maintaining high compression resistance during heavy palletized freight.

While those arches look tough on a fresh sheet, the hidden danger lies in the chemical history of the paper itself.

Beating the Fiber Exhaustion Limit

Procurement teams striving for maximum sustainability often mandate 100 percent recycled testliner for heavy retail merchandisers. They assume a recycled sheet of 32 ECT (Edge Crush Test) board possesses the exact same physical integrity as a fresh one⁷, as long as it passes a static laboratory evaluation.

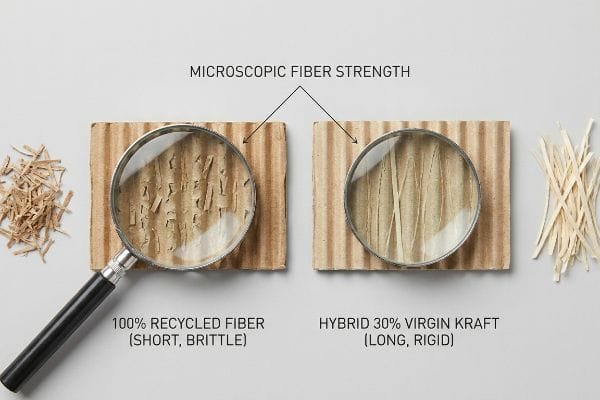

The mechanical reality of paper repulping is that cellulose fibers physically shorten and become exhausted after five recycling cycles⁸. When you force a store clerk to assemble an over-recycled display, you can actually feel the limp, chalky texture of the board as the interlocking tabs immediately tear off in their hands, causing massive frustration and ugly tape jobs. To fix this, I mandate a hybrid material injection of 30 percent virgin kraft directly into the load-bearing flutes. This strategic introduction of long, fresh fibers instantly restores the rigidity required to survive ocean freight, significantly reducing assembly time and wiping out transit damage claims while keeping the brand eco-compliant.

I refuse to sacrifice supply chain survival for a purely cosmetic sustainability metric. Balancing fresh and recycled fibers guarantees your structure handles real-world abuse while still passing strict big-box environmental audits.

🛠️ Harvey's Desk: Are your displays collapsing because your paper supplier is over-recycling their board? 👉 Request a Material Spec Review ↗ — Download safely. My inbox is open if you have questions later.

What Are the Properties of Cardboard That Make It Suitable for Use?

Cardboard dominates retail marketing because of its incredible strength-to-weight ratio and adaptability.

The properties of cardboard that make it suitable for use include its lightweight cellular structure, high tensile flexibility, excellent printability, and curbside recyclability. This combination allows brands to engineer massive, highly visible retail displays that ship flat and assemble rapidly without requiring permanent metal or plastic hardware.

It's a brilliant material, but it is also highly porous, which introduces severe environmental variables on the shipping dock.

Managing the Humidity Swelling Factor

Think of cardboard like a dry sponge. Designers in climate-controlled offices often set cutting tolerances based strictly on the absolute dry thickness¹² of the board. They assume a 0.12 inches (3 mm) slot will perfectly receive a matching tab forever, ignoring the atmospheric journey the packaging must take.

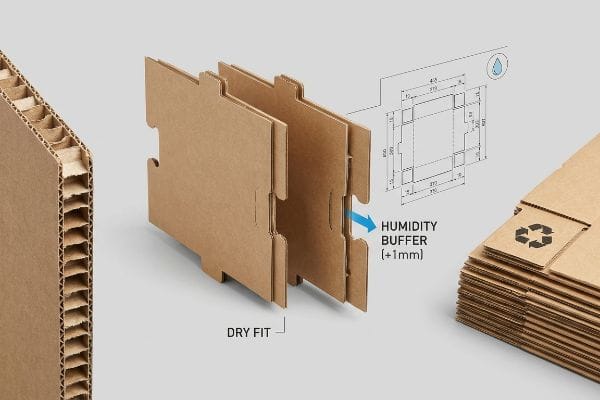

When flat-packs sit in high-humidity regions like Florida, the porous testliner absorbs ambient moisture and physically swells¹³. A slot that fit perfectly in the software suddenly becomes too tight. I see rookie co-packers sweating on the assembly line, aggressively forcing the expanded parts together until the top sheet crinkles and delaminates. To solve this, I engineer an automatic humidity buffer directly into the dieline, adding an extra 0.04 inches (1 mm) of clearance to all receiving slots¹⁴. This mathematical allowance absorbs the paper expansion, ensuring a completely frictionless, zero-tear assembly that drastically cuts machine downtime and saves clients thousands in manual labor fees.

I always design for the worst-case warehouse climate, never the pristine office environment. A tiny mathematical clearance buffer is the ultimate insurance policy against slow, agonizing retail installations.

🛠️ Harvey's Desk: Are your displays arriving warped or too tight to assemble in humid markets? 👉 Claim Your Dieline Stress Test ↗ — No forms that trigger endless sales calls. Just pure value.

What Are the Disadvantages of Using Cardboard as a Modelling Material?

Relying solely on cardboard introduces significant blind spots if you treat it like flat digital paper.

The disadvantages of using cardboard as a modelling material stem from its severe physical thickness and fold resistance. Unlike thin digital vectors, thick corrugated flutes consume physical space when bent, creating massive dimensional shifts that can completely ruin structural locking mechanisms if bend allowances are not mathematically calculated.

But knowing the theory isn't enough when the automated machines start running and those folds have to perform flawlessly.

Why Standard Caliper Math Fails on the Factory Floor

Graphic designers frequently build complex interlocking tabs in basic vector software at the exact same width as the mating panel. They draw a straight line and assume the cardboard will simply hinge perfectly on that axis, completely failing to account for the physical caliper of the board during a 90-degree bend¹⁷.

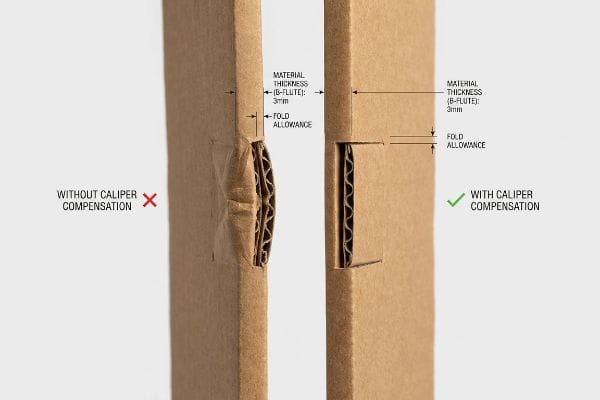

In my facility, I routinely see these flat, uncompensated dielines cause massive assembly bottlenecks. When a 0.12 inches (3 mm) B-flute panel¹⁸ folds, it physically consumes material around the outer radius. If the receiving slot isn't widened, you feel immense structural resistance; the stiff paper fibers fight back, and the entire display severely bows out of square. I fix this by using parametric design to automatically apply caliper compensation algorithms to every fold. By widening the slots specifically to match the bend allowance, I ensure the pre-filled displays sit perfectly square, speeding up the co-packing line by an estimated 25 percent and eliminating the risk of tilted, unstable merchandisers hitting the store floor.

I never trust a flat vector file for a three-dimensional structural problem. By mathematically forcing the dieline to respect the physical thickness of the board, I eliminate the friction that causes assembly lines to grind to a halt.

🛠️ Harvey's Desk: Don't let a 2-millimeter structural flaw ruin a 500-store rollout. 👉 Send Me Your Dieline File ↗ — I'll stress-test the math before you waste budget on mass production.

Conclusion

You can choose a vendor who ignores ambient moisture, but when those 32 ECT testliner tabs swell in a humid warehouse and tear during assembly, slowing down the packing line by an estimated 30 percent, your entire retail rollout is compromised. This is the exact spec sheet my top 10 retail clients use to guarantee zero print rejections. Stop guessing on atmospheric tolerances and let me personally run your files through my Free Dieline Pre-Flight Audit ↗ to catch fatal dimensional shifts before mass production begins.
