You pour budget into a stunning retail campaign, only to see it fail on the floor. Mastering how custom in-store displays are made prevents costly production blind spots.

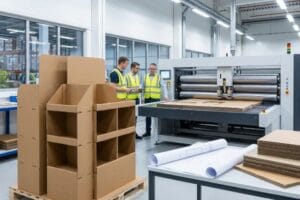

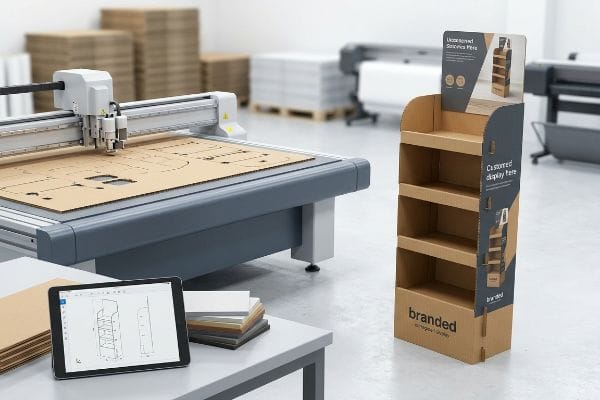

Custom in-store displays are made through a manufacturing process combining structural engineering, litho-lamination, and precise die-cutting. Factories transform raw corrugated paperboard into functional merchandisers using CAD software and automated CNC tables. This ensures strict global compliance, maximum load capacity, and total aesthetic consistency across campaigns.
Let's bridge the gap between creative concepts and brutal factory-floor realities to protect your next rollout.
How to create a store display that people like?
A beautiful 3D render means nothing if shoppers walk right past it in the aisle. Visual appeal requires mastering how commercial lighting interacts with raw substrates.
Creating store displays that people like requires leveraging visual disruption, ergonomic product placement, and color psychology. Engineers design structures hitting the human eye strike zone at fifty inches (127 cm) while utilizing high-contrast spot color printing to capture consumer attention and drive immediate retail sales.
Grabbing attention on a crowded shelf is a science, not an art project.
The Psychology of Visual Disruption and CMYK Mud
Brand teams often assume that a highly detailed, complex graphic will automatically draw consumers in. They hand over a file filled with standard Cyan, Magenta, Yellow, Key (CMYK) gradients, expecting the printed cardboard to match their backlit computer monitors seamlessly. This theoretical approach ignores how porous paper fibers react to standard commercial printing methods1 under harsh fluorescent store lighting.
I frequently see emerging brands fall into the trap of printing their primary logo using standard optical blending on raw testliner2. They assume it saves money, but the blending fails mechanically, creating a grainy, washed-out logo that looks like mud from twenty feet away. In my facility, I fix this by enforcing a spot color flood protocol, mixing a single, dense Pantone (PMS) ink bucket. You can literally smell the heavy, rich pigment drying on the press, and it completely eliminates halftone grain. By switching to a solid spot color, you maximize high-contrast brand visibility3, triggering an immediate retailer approval and driving a proven sales lift because the shopper's eye is caught instantly.
| Common Rookie Mistake | The Pro Fix | Retail-Floor Benefit |
|---|---|---|
| Printing logos in standard CMYK | Mixing specific Pantone spot colors | Eliminates washed-out halftone grain4 |
| Relying on computer screen colors | Physical swatch scanning under D50 light5 | Prevents retail rejection from brand mismatch |
| Placing key info at floor level | Using the 50-inch strike zone6 | Increases direct shopper visual engagement |
A weak color profile should never dilute your brand equity on the floor. Upgrading to a dedicated spot color for your primary branding is the cheapest insurance policy you can buy to guarantee visual disruption.
🛠️ Harvey's Desk: Not sure if your brand colors will turn to mud on raw corrugated board? Send me your artwork files and I'll flag any high-risk optical blending zones. 👉 Request a Color Pre-Flight ↗ — Direct access to my desk. Zero automated sales spam, I promise.
What are store displays made of?
Understanding your substrate is the foundation of structural integrity. Selecting the wrong material guarantees a collapsed campaign before it ever hits the retail floor.
Store displays are predominantly made of corrugated paperboard, specifically single-wall or double-wall structures featuring fluted inner cores. Manufacturers utilize varying grades of kraft linerboard and environmentally friendly water-based adhesives to ensure maximum compression strength, optimal printability, and complete curbside recyclability across diverse retail environments.
Simply specifying "cardboard" on a purchase order is a recipe for physical disaster.

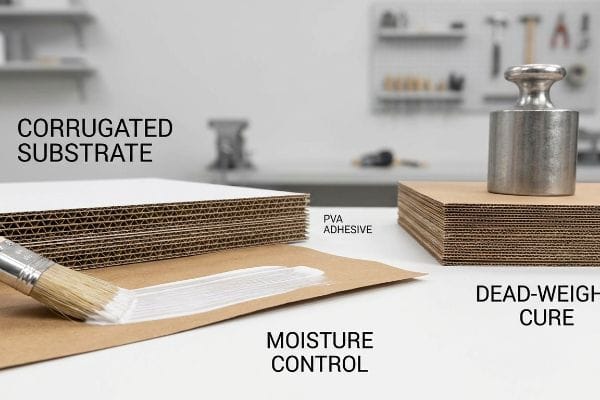

The Danger of PVA Moisture Warp in Corrugated Boards
Procurement managers typically request a heavy B-flute board, assuming thickness directly translates to a perfectly flat, rigid marketing piece. They sign off on high-quality printed top sheets, expecting the final assembled unit to look identical to the pristine, dry sample resting on their office desk. They completely overlook the chemical realities of litho-lamination and how ambient moisture interacts7 with porous raw materials during mass production.
A frequent headache I encounter is when buyers demand a massive side panel but refuse to authorize a balanced duplex board structure to save pennies. When we apply wet, water-based Polyvinyl Acetate (PVA) adhesive across that large surface area, the paper immediately absorbs the liquid. As that glue cures, you can physically feel the immense surface tension pulling the fibers, causing the entire display panel to warp and bow8 inward like a potato chip. I strictly mandate a cure weight protocol, stacking wet boards under heavy dead-weight pressure for 24 hours9 to force a flat cure. This specific moisture management process guarantees your displays stand perfectly straight in the aisle, completely preventing wobbly shelves that frustrate store clerks and ruin your premium brand presentation.
| Common Rookie Mistake | The Pro Fix | Retail-Floor Benefit |
|---|---|---|
| Ignoring water-based glue shrinkage | Engineering a balanced duplex board | Prevents massive side panel warping |
| Rushing the lamination drying process | Enforcing a 24-hour dead-weight cure | Ensures displays stand perfectly straight |
| Using solid plastic PLA films | Applying liquid aqueous coatings | Maintains 100% curbside recyclability |
Engineers must remember they are manipulating living, breathing paper fibers, not pouring concrete. Controlling the chemical moisture tension during lamination is exactly what separates a premium retail merchandiser from a leaning pile of trash.
🛠️ Harvey's Desk: Are your large display panels secretly warping under the chemical tension of unchecked wet adhesive? 👉 Verify Your Material Specs ↗ — Download safely. My inbox is open if you have questions later.
Who sets up displays in stores?
A brilliant design is completely useless if the person unpacking the box cannot figure out how to put it together without tearing the cardboard.
Store displays are set up by retail clerks, third-party merchandising teams, or specialized co-packers at distribution centers. These workers rely on intuitive, tool-free locking mechanisms and visual assembly instructions to rapidly construct the units, ensuring the merchandisers reach the retail floor quickly and without structural damage.
The environment where your unit is built is chaotic, fast-paced, and completely unforgiving to bad engineering.

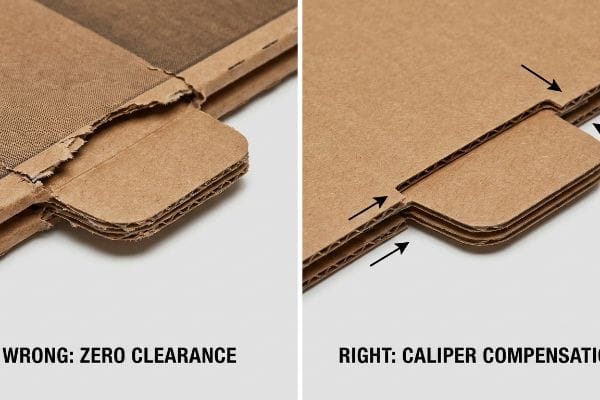

Friction at the Finish Line and Caliper Compensation
Graphic designers working in digital vector software often draw interlocking tabs and slots at the exact same width as the mating panel. They assume that a digital line on a screen perfectly translates to physical geometry, creating a seamless friction fit. This basic approach fails to account for the physical thickness, or caliper10, of the folded material once it transitions from a flat sheet into a three-dimensional object.
It is a classic rookie trap to send a flat dieline that lacks proper bend allowances for a 0.12 inch (3 mm) thick corrugated board11. I have watched frustrated co-packers sweat on the assembly line, forcefully shoving an oversized tab into a rigid slot until you hear the sickening tear of the printed top sheet. I fix this by using parametric design software to automatically apply caliper compensation algorithms, widening the receiving slots to match the exact fold radius. Providing this extra micro-clearance ensures a frictionless, zero-tear setup, which slashes manual labor time at the co-packing facility by an estimated 25%12 and protects your graphics from brutal handling.
| Common Rookie Mistake | The Pro Fix | Retail-Floor Benefit |
|---|---|---|
| Drawing slots at identical tab widths | Adding caliper compensation to slots13 | Eliminates forced friction during setup |
| Providing text-heavy assembly manuals | Supplying IKEA-style visual guides14 | Speeds up execution by store clerks |
| Designing complex separate shelves | Using pre-glued modular folding trays | Slashes co-packing assembly time |
Every interlocking mechanism must be engineered under the assumption that the assembly worker is exhausted and rushed. If a cardboard tab requires brute force to seat correctly, the math is fundamentally wrong.
🛠️ Harvey's Desk: Are your dielines secretly hiding structural friction points that will slow down your assembly line? Send me the flat file and let me correct the math. 👉 Get an Assembly Friction Audit ↗ — No forms that trigger endless sales calls. Just pure value.
How do retail stores display their merchandise?
Securing real estate in a big-box retailer is highly competitive. How your merchandise physically arrives and sits on the floor dictates your entire campaign's success.
Retail stores display their merchandise using strategically placed end-caps, aisle dump bins, and floor merchandisers optimized for fractional wood pallets. Retailers enforce strict spatial rules, requiring brands to utilize specific dimensions that maximize product density while ensuring safe navigation and high visibility for the everyday consumer.
But knowing the theory isn't enough when the machines start running and freight begins to move.

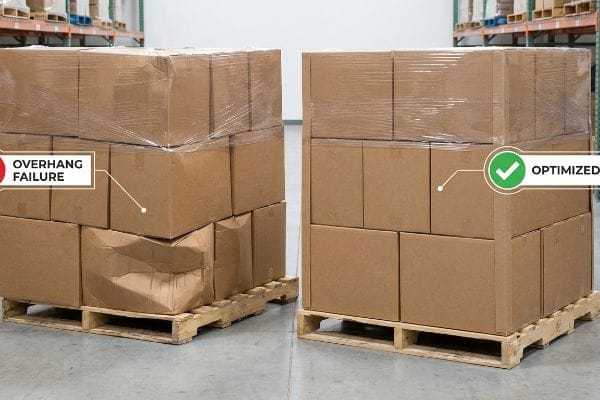

The Hidden Danger of Pallet Overhang Failures
Procurement teams frequently try to maximize shipping density by expanding the footprint of their master cartons to pack in a few extra units. They assume that as long as they specify a heavy-duty board grade with a high Edge Crush Test (ECT) rating15, the raw material will easily protect the internal goods during transit. This dangerous oversight completely ignores the harsh realities of dynamic load distribution when those heavy boxes are double-stacked16 in a humid warehouse environment.
In my facility, I routinely see clients submit designs where the master carton overhangs the standard 48×40 inch (121×101 cm) Grocery Manufacturers Association (GMA) pallet17 by just a fraction of an inch. When I place these units under a compression tester, the results are brutal; because a corrugated box derives up to 60% of its vertical strength18 specifically from its four aligned corners, any overhang means those corners carry zero load. The unsupported bottom tier visibly bows outward and catastrophically crushes under the massive top weight. I correct this by mathematically shrinking the carton footprint by exactly 0.5 inches (12.7 mm) inside the structural software, guaranteeing a zero-overhang bounding box. Enforcing this strict perimeter tolerance restores the corner compression strength, entirely eliminating transit damages and preventing massive chargebacks from retail receiving docks.
| Common Rookie Mistake | The Pro Fix | Retail-Floor Benefit |
|---|---|---|
| Overhanging the wood pallet edges | Enforcing a zero-overhang perimeter | Prevents catastrophic bottom-tier crushing |
| Demanding full 48×40 display footprints | Pitching half or quarter fractional sizes | Secures highly competitive aisle space |
| Using unsupported open-top containers | Aligning the paperboard grain vertically | Boosts dynamic top-load stacking strength |
Warehouse forklift drivers will never treat your heavy freight gently. Mathematically locking your shippers entirely inside the wooden pallet boundaries is absolutely non-negotiable for protecting your inventory against catastrophic bottom-tier crushing.
🛠️ Harvey's Desk: Do you know exactly how much compressive strength your master cartons lose if they overhang the wood pallet by 0.5 inches? 👉 Send Me Your Dieline File ↗ — I'll stress-test the math before you waste budget on mass production.
Conclusion
You can source the thickest corrugated board on the market, but if your master cartons overhang the wooden pallet by even a fraction of an inch, the unsupported bottom tier will catastrophically crush under the warehouse weight, wiping out your entire campaign's profit margin. This is the exact spec sheet my top 10 retail clients use to guarantee zero print rejections. Stop gambling with structural blind spots and let me personally optimize your CAD geometry through my Free Dieline Pre-Flight Audit ↗ before you authorize mass production.
