You want your product to leap off the shelf, but poor structural engineering often leaves retail trays damaged, leaning, or rejected by strict store managers before shoppers even see them.

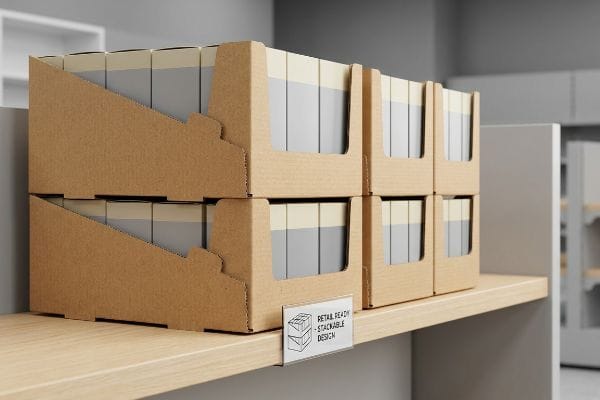

Effortless shelf placement for PDQ trays demands highly engineered self-stacking mechanisms. These compact retail merchandisers maximize impulse purchases in high-traffic checkout zones. By combining pre-glued modular structures with precision-cut corrugated board, brands ensure fast unpacking and strict compliance with global big-box retailer merchandising guidelines.
Understanding the theoretical design is just the starting line. Surviving the journey from a humid factory floor to a brightly lit US retail aisle requires rigid structural discipline.
What Is a PDQ Display?
Many marketing directors view these compact countertop trays merely as simple printed boxes, completely underestimating the mechanical physics required to hold heavy products safely.
A PDQ display is a lightweight, retail-ready merchandiser designed for immediate point-of-purchase placement. Often stationed near cash registers or end-caps, these self-stacking trays hold fast-moving consumer goods. They eliminate complicated in-store assembly, allowing clerks to transition products straight from shipping master cartons to active retail aisles instantly.
Getting that fast transition right, however, is where amateur dielines usually collapse under pressure.
The Physics of a Self-Stacking PDQ Structure

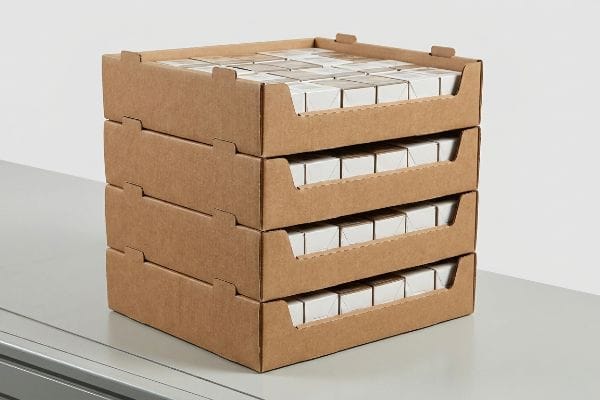

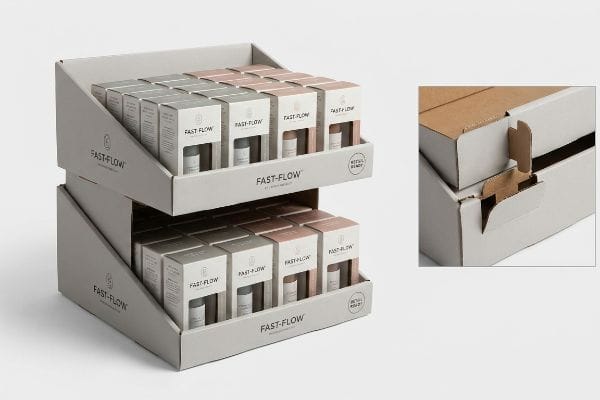

Most beginner designers construct self-stacking trays using basic friction-fit slots1, assuming store clerks will carefully align each tier. They rely on standard tuck-flaps2 that look perfectly stable in a flat 2D vector file. However, this entirely ignores the chaotic, high-speed reality of a busy checkout lane where employees are rushed.
I frequently see clients struggle because their display trays require tedious folding. A hurried clerk sweating to force a complex tab for ten minutes will inevitably resort to ugly clear tape, ruining the brand's aesthetic. You hear that distinct tearing sound of raw paperboard as they aggressively jam the tabs together. To fix this, I mandate pre-glued modular stacking systems. By using auto-bottom crash locks3, the tray snaps into its 3D shape instantly with zero manual friction, cutting co-packing labor significantly4 and saving crucial supply chain margins.
| Common Rookie Mistake | The Pro Fix | Retail-Floor Benefit |
|---|---|---|
| Relying on friction-fit tabs | Pre-glued modular auto-bottoms | Saves 45s of assembly time5 |
| Expecting careful alignment | Crash-lock structural geometry6 | Prevents paperboard tearing |
| Using visible clear packing tape | Interlocking gravity mechanics7 | Protects front lip aesthetics |
I refuse to let brands lose money on complex folding labor when smart prepress geometry solves the problem instantly. If your tray takes more than three seconds to pop open, your dieline is actively burning your promotional budget.
🛠️ Harvey's Desk: Not sure if your stacking tabs will survive a rushed store clerk? 👉 Get Your Dieline Audited ↗ — Direct access to my desk. Zero automated sales spam, I promise.
What Is a Display-Ready Case?
Transitioning from a sealed shipping box directly to an open retail bin seems like a brilliant cost-saving move, until you realize what you sacrifice in vertical compression strength.
A display-ready case is a hybrid corrugated shipping container featuring pre-perforated panels or removable lids. These structures transport goods safely across global supply chains and immediately convert into open-faced retail merchandisers. This dual-purpose packaging minimizes unpacking labor while ensuring consistent brand visibility directly on the store shelves.
But removing that top lid creates a massive structural vulnerability that most procurement teams fail to calculate.
Surviving the RSC to HSC Compressive Drop

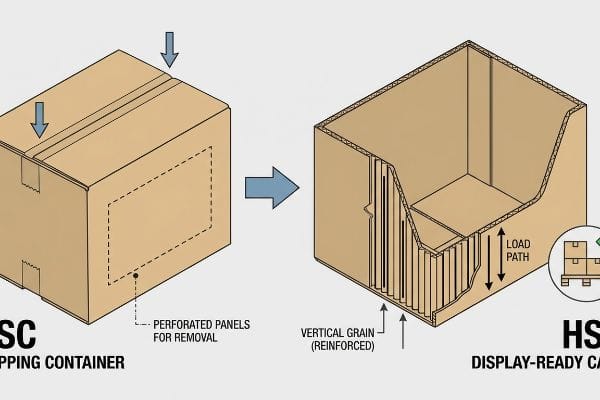

Brands frequently request to downgrade their standard RSC (Regular Slotted Container) shippers into open-top HSC (Half Slotted Container) display cases to create instant retail bins. They assume the raw material thickness alone will naturally protect the heavy internal merchandise during transit. Unfortunately, this completely strips away the top flaps that distribute top-load pressure8.
Clients constantly ask why their display-ready cases arrive crushed at big-box retailers. When you remove the continuous top enclosure, the open edges become highly vulnerable to buckling under a heavy 2,000 lbs (907.18 kg) pallet load9. I have seen the messy stickiness of cheap tape failing as a crushed open-top bin completely caves in on itself in the warehouse. To prevent this, I mathematically align the corrugated grain perfectly vertical to maximize the ECT10 (Edge Crush Test) strength, strictly restoring the structural deficit caused by the missing lid.
| Common Rookie Mistake | The Pro Fix | Retail-Floor Benefit |
|---|---|---|
| Ignoring missing top flaps | Upgrading flute thickness11 | Prevents bottom tier collapse |
| Horizontal grain orientation | Strict vertical grain alignment12 | Restores vertical load capacity |
| Relying on soft internal goods | Double-wall board profiles13 | Eliminates warehouse crushing |
I never allow cosmetic cost-cutting to compromise vertical load capacity. Upgrading the internal flute direction ensures your open-top bins survive double-stacked freight without catastrophic base-tier collapse.
🛠️ Harvey's Desk: Are your perforated display cases bowing under heavy warehouse pallets? 👉 Claim Your Structural Review ↗ — Download safely. My inbox is open if you have questions later.
What Does PDQ Stand for in Retail?
The acronym sets a very specific expectation for store managers, and failing to deliver on that speed will get your merchandise permanently banished to the backroom.
In retail, PDQ stands for Pretty Darn Quick, representing packaging designed for rapid shelf deployment. These pre-packed merchandisers arrive fully loaded with consumer goods, requiring zero physical assembly. This methodology ensures store employees can execute seasonal promotional changeovers efficiently, maintaining strict compliance with high-volume grocery aisle turnover rates.
The concept of speed sounds fantastic on a boardroom whiteboard, but physical friction often destroys this efficiency on the floor.
Breaking the Nested Friction Lock

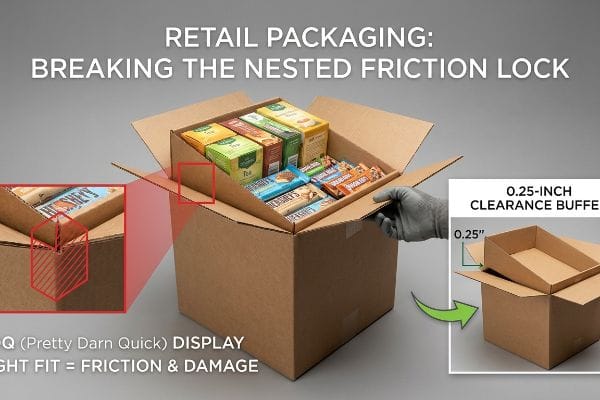

Junior designers typically engineer the master shipping carton to match the exact exterior dimensions of the internal display tray. They assume this 1:1 tight fit provides maximum transit protection for the fragile goods inside. However, they completely ignore the abrasive surface friction generated by raw, unvarnished paperboard materials14.
Think of it like trying to pull off a wet winter boot; a vacuum seal forms. When a store clerk attempts to pull a tightly nested 24-inch (609.6 mm) tray out of a shipper, the rigid paperboard walls lock together. I constantly see ripped graphics because clerks aggressively yank on the front panels, yielding the rough, powdery feel of torn die-cutting dust. As a rule of thumb, I always engineer a strict 0.25-inch (6.35 mm) geometric offset tolerance15 into the master carton cavity to break this friction lock instantly.
| Common Rookie Mistake | The Pro Fix | Retail-Floor Benefit |
|---|---|---|
| Exact 1:1 nested dimensions | 0.25-inch perimeter clearance16 | Prevents tray extraction tearing |
| Tight unvarnished side walls | Geometric offset tolerance17 | Speeds up shelf stocking |
| Vacuum-sealed inner shippers | Built-in physical air gaps18 | Eliminates unpackaging frustration |
I strictly enforce this perimeter clearance buffer on every nested packaging system I produce. Eliminating surface resistance guarantees a frictionless unpacking experience, safeguarding your graphic retaining lip from aggressive handling.
🛠️ Harvey's Desk: Are your retail trays getting stuck inside their own shipping boxes? 👉 Request a Tolerance Check ↗ — No forms that trigger endless sales calls. Just pure value.
What Is PDQ in Supply Chain?
Beyond just shelf aesthetics, these units function as active logistical vessels that must survive aggressive mechanical handling across turbulent international transit routes.
Within the supply chain, PDQ signifies pre-filled, retail-ready units optimized for seamless palletization and immediate distribution. These modular displays bypass secondary warehouse repacking, traveling directly from manufacturing centers to final retail destinations. This efficient routing drastically minimizes labor costs and reduces severe material fatigue during extended ocean freight journeys.
But knowing the theory isn't enough when the machines start running and the climate rapidly shifts during transport.
Why Standard Transit Assumptions Fail on the Factory Floor
Procurement teams often set their dieline slot tolerances based strictly on the absolute dry caliper of the board19 in a climate-controlled office. They assume that if a cardboard tab perfectly fits a slot on their CAD (Computer-Aided Design) software screen, it will smoothly assemble during final fulfillment. This ignores the volatile environmental physics of trans-Pacific shipping20.

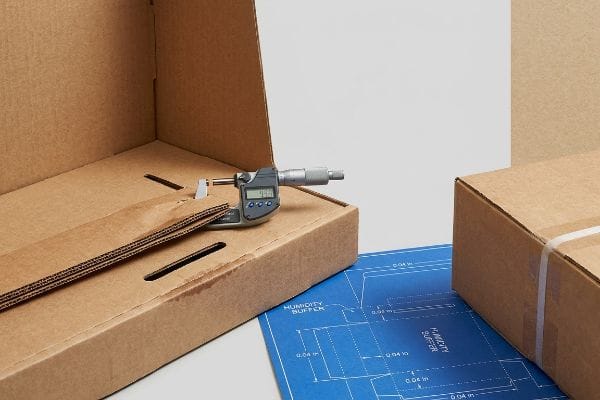

In my facility, I routinely see perfectly drafted files fail because porous 32 ECT testliner absorbs ambient moisture21 during ocean freight. When I measure the swollen boards with my micrometer, that theoretical 0.12 inches (3.04 mm) B-flute22 has expanded, making the slots too tight. You can physically feel the stiff, damp resistance of the swollen virgin kraft board as the co-packing team struggles to force the display together. I fix this by automatically programming an extra 0.04 inches (1.01 mm) humidity buffer directly into the receiving slots. This ruthless micro-adjustment ensures co-packing assembly time drops by 45 seconds per unit, saving clients significant labor fees while preventing torn top-sheets.
| Common Rookie Mistake | The Pro Fix | Retail-Floor Benefit |
|---|---|---|
| Drafting slots to dry caliper | Adding a 0.04-inch humidity buffer23 | Ensures smooth interlocking |
| Ignoring ocean freight moisture | Micro-adjusting E-flute tolerances24 | Drops co-packing labor time |
| Forcing tight tabs into slots | Pre-engineered expansion gaps25 | Stops top-sheet delamination |
I rely on real-world micrometer readings rather than sterile software simulations. Building mathematical humidity buffers into your cutting files completely neutralizes environmental swelling, keeping your supply chain lean and profitable.
🛠️ Harvey's Desk: Do you know the exact moisture expansion rate of your current corrugated material? 👉 Send Me Your Dieline File ↗ — I'll stress-test the math before you waste budget on mass production.
Conclusion
You can opt for the cheapest die-cut template online, but when that swollen corrugated board creates massive assembly friction in a humid warehouse, slowing down the fulfillment line by an estimated 30%, it will completely wipe out your campaign's profit margin. Over 500 brand managers use my prepress checklist to avoid these exact fatal early-stage mistakes. Stop guessing on board tolerances and let me personally run your files through my Free Dieline Audit ↗ to catch critical structural friction points before mass production begins.
