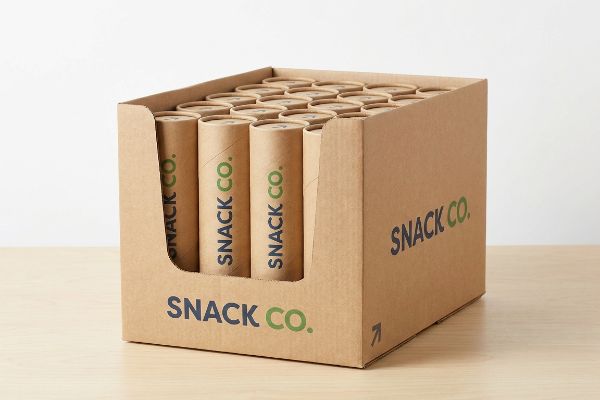

Designing PDQ Trays

You spend weeks engineering the perfect product, only to see it buried on a messy retail shelf. A custom tray solves this visibility crisis immediately.

Designing a PDQ (Pretty Darn Quick) tray requires merging visual disruption with structural physics to secure impulse purchases at the register. These shelf-ready units keep merchandise organized, maximize brand equity, and ensure seamless restocking for big-box retailers across global markets.

But sketching a nice box on a screen is completely different from surviving a harsh big-box environment. Let me walk you through the structural realities of building trays that actually perform.

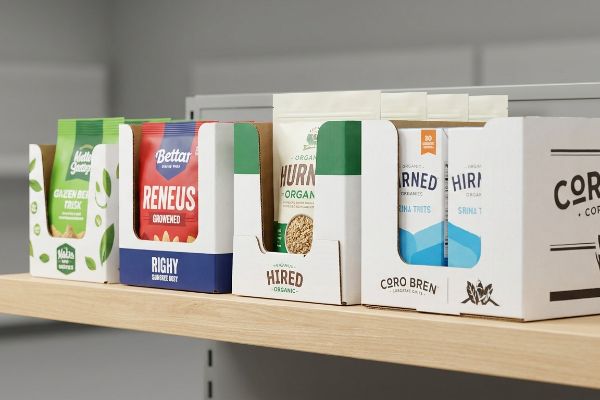

What is a PDQ tray?

A display tray seems like a simple container, but it is actually a highly engineered merchandising tool designed for extreme retail efficiency.

A PDQ tray is a compact, shelf-ready corrugated merchandiser engineered for rapid retail deployment. Typically placed on countertops or end-caps, these units secure lightweight consumer packaged goods, accelerate restocking times, and aggressively drive impulse conversions in high-traffic checkout zones.

Understanding the basic function is easy. The real challenge begins when you try to balance the tray's height against the physical weight of your products.

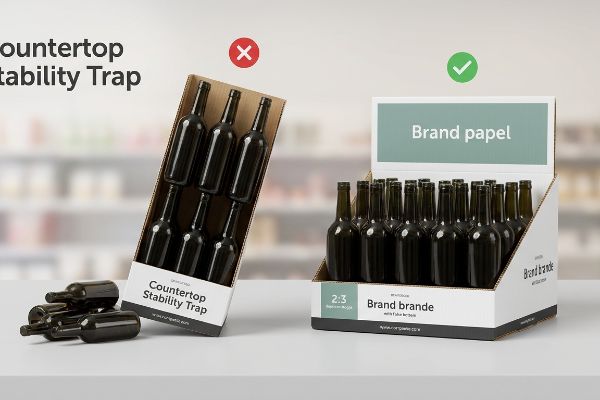

The Countertop Stability Trap

Even veteran designers often assume they can simply build a tray with a towering back panel to maximize graphic space. The standard approach is to draw a massive billboard header, fill the tray with heavy liquids or cosmetics, and assume the base will magically hold the structure upright.

I see this physical mismatch on the testing floor constantly. A client will send a beautiful file, but when I load the physical 32 ECT (Edge Crush Test)¹ prototype with their actual glass bottles, the center of gravity shifts entirely to the rear. The moment a shopper bumps the shelf, I hear the distinct crinkling sound of the bottom flutes buckling as the unit tips backward, spilling inventory everywhere. To prevent this, I enforce a strict 2:3 ratio rule for depth versus height². By mathematically widening the base footprint, we stabilize the load, entirely eliminating the risk of countertop collapse and preventing costly retailer rejection penalties.

I refuse to manufacture top-heavy units because gravity always wins on the retail floor. Fixing the structural ratio up front guarantees your merchandising investment actually survives the campaign lifecycle without demanding constant store-level maintenance.

🛠️ Harvey's Desk: Not sure if your header is too tall for your product weight? 👉 Get A Free Stability Check ↗ — Direct access to my desk. Zero automated sales spam, I promise.

How to design good packaging?

Creating functional retail structures requires moving past aesthetic graphics and focusing heavily on the mechanical behaviors of raw paperboard materials.

Designing good packaging requires integrating strict structural math with high-visibility branding. Beyond surface graphics, successful execution demands exact material tolerances, optimized die-cutting templates, and environmentally compliant coatings to ensure the final corrugated unit survives massive supply chain friction intact.

Buyers frequently ask how to guarantee their flat designs will fold perfectly on the assembly line. The answer lies in the microscopic math of the dieline.

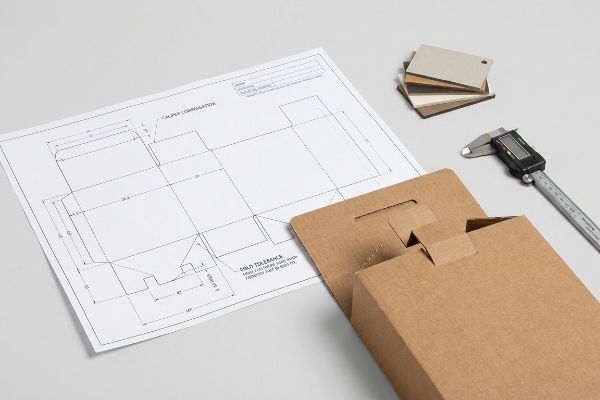

Mastering Caliper Compensation

A frequent trap that catches even experienced procurement teams is treating folded cardboard like a flat piece of digital paper. They will design interlocking tabs exactly the same width as the receiving slots⁶ in their vector software, assuming the pieces will slide together effortlessly during fulfillment.

The physical reality of corrugated board is far less forgiving. When a worker folds a piece of B-flute cardboard at 90 degrees, the 0.11 inches (2.8 mm) of material physically consumes space, creating an outer radius. I have watched co-packers sweat and swear, aggressively forcing a tight tab into an unadjusted slot until I hear the tearing sound of raw paperboard ripping at the seams. To fix this, I automatically run caliper compensation algorithms on every incoming CAD (Computer-Aided Design) file, widening the slots to account for the exact bend allowance. This mathematical adjustment guarantees a frictionless assembly, shaving off an estimated 30% in manual labor time at the co-packing facility.

I never trust a flat visual file without testing the physical fold tolerances first. Stripping out the structural friction before mass production begins is the only way to protect your packing budget from massive manual labor overruns.

🛠️ Harvey's Desk: Are your interlocking tabs causing bottlenecks at the co-packer? 👉 Request A Dieline Audit ↗ — Download safely. My inbox is open if you have questions later.

What size is a PDQ box?

The dimensions of a retail tray are never arbitrary. They are strictly governed by the physical steel architecture of the big-box store shelving.

The size of a PDQ box typically ranges from 12 to 24 inches (30.4 to 60.9 cm) wide, depending heavily on the target retail channel. However, absolute maximum dimensions are strictly dictated by store shelving standards, ensuring the unit perfectly fits designated end-caps without hazardous overhang.

While custom dimensions offer flexibility for your product, ignoring the retailer's rigid spatial limits will result in immediate rejection at the receiving dock.

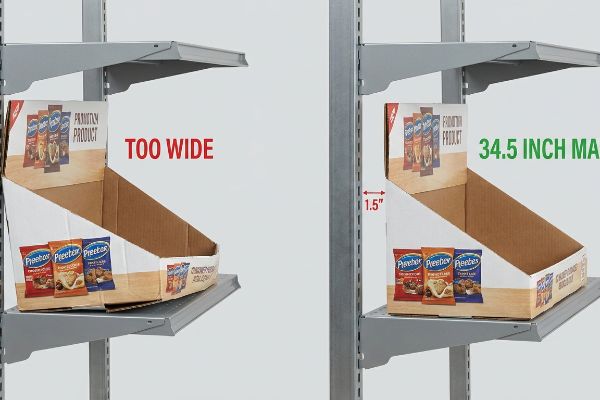

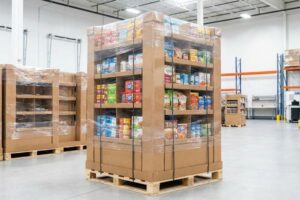

Surviving the End-Cap Width Standard

Brands often calculate their tray sizes based entirely on how many units they want to ship, treating the master carton efficiency as the only metric. They will design a massive tray to maximize product density, assuming the store manager will simply clear out extra shelf space for their promotion.

Think of retail shelving like real estate; you cannot build a house that crosses the property line. In my facility, I constantly intercept files scaled to 36 inches (91.4 cm) wide because the designer simply measured the total width of a standard US end-cap. The problem is that metal shelves have internal support brackets that consume space. If a tray is exactly 36 inches (91.4 cm), it will loudly scrape against the steel uprights, forcing the stockboy to crush the side walls just to jam it in. I mandate a strict maximum width of 34.5 inches (87.6 cm) for these specific rollouts. This engineered clearance ensures the unit slides into place effortlessly, securing your premium store placement while eliminating the risk of transit damage.

I mathematically anchor every project to the retailer's spatial reality before we even discuss printing. Shrinking your footprint by half an inch can be the deciding factor between a sold-out campaign and a warehouse full of rejected inventory.

🛠️ Harvey's Desk: Are your display dimensions violating strict big-box end-cap rules? 👉 Claim Your Retail Spec Sheet ↗ — No forms that trigger endless sales calls. Just pure value.

What is the full form of PDQ packaging?

Knowing the acronym terminology is helpful for meetings, but understanding the operational urgency behind the name is what actually keeps your merchandise flowing.

The full form of PDQ packaging is Product Display Quarter, though the industry universally translates it as Pretty Darn Quick. This classification demands rapid, zero-friction assembly, meaning the corrugated structure must transition from a flat shipper to an active retail merchandiser in mere seconds.

But knowing the theory isn't enough when the machines start running. The promise of "quick" assembly often breaks down into a nightmare of manual labor if the internal engineering is flawed.

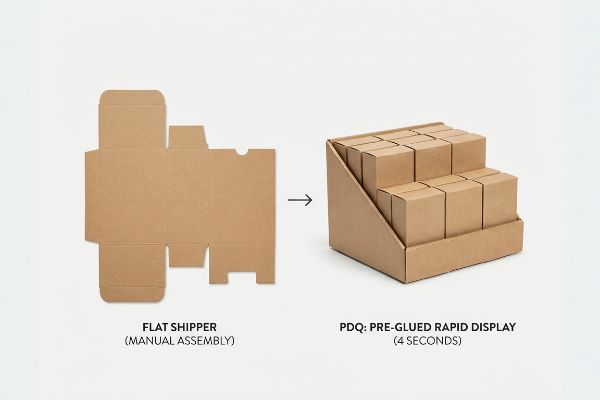

The Zero-Frustration Factory Reality

A seemingly reasonable but actually dangerous assumption buyers make is that any small box can be labeled as a quick-setup unit¹². They approve complex origami-style folding patterns with multiple loose dividers¹³, assuming cheap unit costs will offset the time it takes the retail worker to assemble it on site.

This isn't just theory—I see this happen on the testing floor when complex flat-packs arrive for pilot runs. When a design relies entirely on manual locking tabs rather than machine gluing, I measure the setup time and watch it drag past two minutes per unit. The stiff resistance of the virgin kraft board causes major hand fatigue, and workers eventually resort to ripping the locking mechanisms just to hit their daily quotas. To fix this, I mandate a pre-glued modular system using automated folder-gluers on our production line. By shifting the complexity away from the human and into the manufacturing machinery, I ensure the co-packing assembly time drops to roughly 4 seconds per unit¹⁴, drastically cutting labor fees and guaranteeing the trays hit the retail floor exactly as intended.

I refuse to ship puzzles to the retail floor. Over-engineering the factory process so that the final user experiences absolute simplicity is how you scale a massive rollout without drowning in assembly costs.

🛠️ Harvey's Desk: Are your complex folding instructions secretly draining your co-packing budget? 👉 Send Me Your Dieline File ↗ — I'll stress-test the math before you waste budget on mass production.

Conclusion

You can choose a cheaper vendor, but when a top-heavy tray built without proper caliper compensation buckles under its own weight, it causes massive friction, slowing down the assembly line by an estimated 30%, and completely wiping out the project's profit margin. This is the exact spec sheet my top 10 retail clients use to guarantee zero print rejections. Stop guessing on material physics and let me personally run your structural files through my Free Dieline Audit ↗ to catch fatal load-bearing errors before mass production begins.
