Walmart's retail aisles are unforgiving. A visual concept fails instantly if it ignores strict supply chain math, ultimately resulting in collapsed displays and rejected pallets.
The 7 design tips for Walmart packaging involve optimizing structural integrity, adhering to strict retailer compliance rules, maximizing pallet density, utilizing vibrant spot colors, ensuring curbside recyclability, streamlining co-packing assembly, and prioritizing standardized transit survival protocols to guarantee your merchandise arrives safely.
Let's break down exactly how these principles stop theoretical paper designs from turning into expensive factory-floor disasters before your campaign even launches.
What are the 7 basic steps to packaging design?
Designing a retail display is a strict sequence of structural engineering.
The 7 basic steps to packaging design are defining the retail environment, engineering the physical dieline, applying caliper compensation, creating the graphic layout, producing a white sample, conducting transit testing, and finalizing mass manufacturing to ensure absolute structural stability.
Missing even one of these structural engineering steps guarantees a physical breakdown when the raw cardboard hits the automated folding machines.

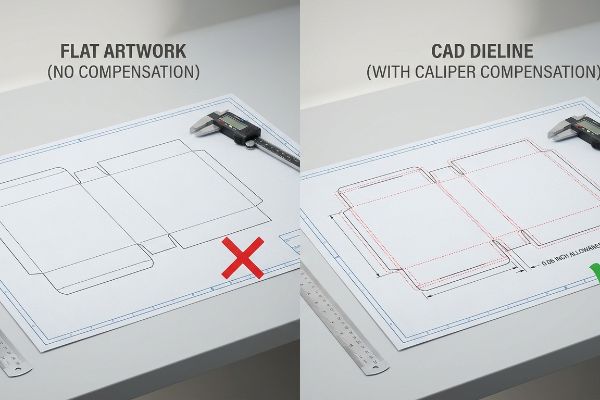

Why Skipping Caliper Compensation Ruins Retail Dielines
Graphic designers frequently jump straight to the artwork phase, treating a 3D corrugated structure exactly like a flat digital banner. They build interlocking tabs and folding slots in Adobe Illustrator at the exact same width as the mating panel1. This workflow assumes that if a design fits perfectly on a flat computer monitor, it will automatically fold perfectly on the active retail floor.
I see this trap constantly when clients hand me flat artwork without checking the physical thickness of the board itself. Even veteran buyers often fail to calculate the material caliper of an E-flute board at 0.06 inches2 (1.5 mm). When that thick paper folds 90 degrees, it physically consumes material, meaning the receiving slot on the dieline must be widened to compensate3 for the fold's outer radius. I recently watched a co-packing team sweat through an assembly test, aggressively forcing tabs into undersized slots until you could hear the loud, dull tearing of raw paperboard. The display bases severely bowed outward. We fix this by running every file through CAD (Computer-Aided Design) software first, automatically applying bend allowance tolerances so the pre-filled displays assemble smoothly and sit perfectly square.
| Common Rookie Mistake | The Pro Fix | Retail-Floor Benefit |
|---|---|---|
| Drawing 1:1 tabs in Illustrator | Applying CAD bend allowances4 | Prevents torn tabs during assembly |
| Ignoring material caliper | Adding 1.5 mm flute compensation5 | Eliminates base bowing and friction |
| Graphic design before structure | Locking a verified PDF dieline first6 | Saves hours of expensive co-packer labor |
I mandate structural engineering before graphic design because fighting physical paper thickness on a live assembly line destroys your profit margin and delays your entire shipping schedule.
🛠️ Harvey's Desk: Not sure if your flat artwork properly accounts for thick paperboard folding? 👉 Request a Free Dieline Audit ↗ — Direct access to my desk. Zero automated sales spam, I promise.
What are the 7 functions of packaging?
Beyond just holding a product, secondary cartons must survive a highly hostile supply chain.
The 7 functions of packaging include product protection, logistical optimization, brand communication, retailer compliance, consumer convenience, tamper evidence, and environmental sustainability. Properly engineered master cartons fulfill these roles by balancing heavy physical load capacities with highly visible marketing elements.
However, the protective and logistical functions fail instantly if the structural math ignores the wooden platform beneath it.

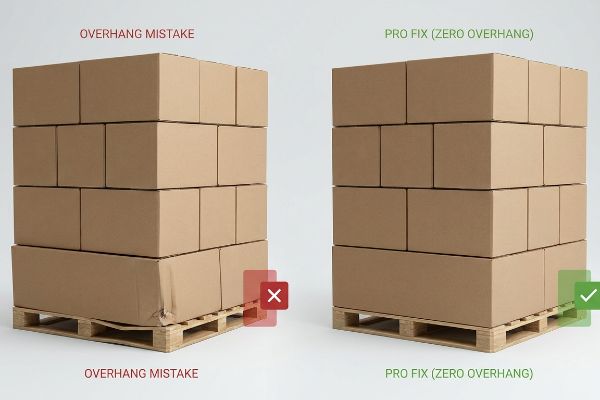

How Pallet Overhang Destroys the Protection Function
Procurement teams naturally want to maximize shipping density, so they expand the master carton dimensions to fit as many units as possible inside a shipping container. They falsely assume the raw compression strength of a heavy-duty box will protect the goods regardless of how it physically sits on the wooden base7.
This is where theoretical logistics meets physical disaster. A corrugated box gets up to 60% of its vertical BCT (Box Compression Test) strength strictly from the direct alignment of its four vertical corners. If a buyer expands the footprint so it overhangs a standard 48×40 inch (121.9×101.6 cm) pallet by just a fraction of an inch, those rigid corners are suspended in thin air. During a recent pre-shipment audit, I smelled the damp wood of cheap export pallets and noticed the bottom tier of cartons bowing outward because the unsupported center panels were taking all the dynamic top-load weight. To stop this catastrophic crushing, we artificially shrink the maximum allowable carton footprint in our structural software by exactly 0.5 inches (12.7 mm), guaranteeing the corners always bear the compressive force.
| Common Rookie Mistake | The Pro Fix | Retail-Floor Benefit |
|---|---|---|
| Overhanging the wood pallet | Enforcing a zero-overhang CAD limit | Maintains 100% of carton compression strength8 |
| Relying strictly on raw ECT | Shrinking carton footprint by 12.7 mm9 | Prevents bottom-tier inventory crushing |
| Ignoring vertical corner alignment | Centering loads inside the perimeter | Eliminates transit damage and retailer chargebacks |
I refuse to compromise master carton dimensions for a minor density gain because an overhanging box loses its core protective function immediately, leading to crushed inventory and furious store managers.
🛠️ Harvey's Desk: Do you know if your master cartons are secretly overhanging the wood pallet and losing their vertical strength? 👉 Audit Your Structural Math ↗ — Download safely. My inbox is open if you have questions later.
What are the tips for packaging?
Successfully pitching to Walmart means understanding how human beings physically navigate massive warehouses.
The tips for packaging include utilizing vibrant spot colors, enforcing strict dieline bleeding margins, avoiding mixed material plastic laminations to ensure curbside recyclability, and employing the spatial engagement rule to actively capture rushing consumer attention at various aisle distances.
A common trap is designing these units strictly for close-up monitor viewing, entirely ignoring the massive visual scale of a retail warehouse.

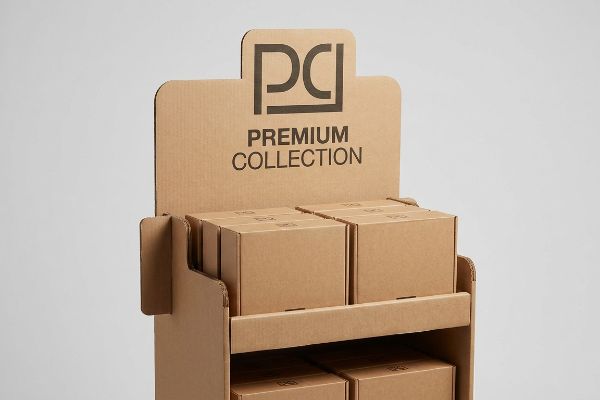

Utilizing the 3-3-3 Visual Engagement Rule
Many marketing teams design retail displays perfectly symmetrically, treating the corrugated structure exactly like a flat digital banner. They pack every available inch with detailed promotional text and assume that a rushing shopper will naturally stop to read a dense paragraph of product features.
Think of it like designing a highway billboard versus a restaurant menu; you cannot use the same font size for both. A display must capture visual attention from thirty feet away10, engage specific interest at three feet, and drive the physical conversion at three inches. I often see brands print intricate seasonal messaging all over the bottom base panels. When I walk past these units on the testing floor, the visual clutter is overwhelming, and my eyes naturally glaze over the tiny text. We fix this cognitive overload by stripping away the secondary copy and using a massive 3D die-cut header to disrupt the aisle at 30 feet, while dropping the front retaining lip down to guarantee 85% product visibility11 for that final tactile impulse conversion.
| Common Rookie Mistake | The Pro Fix | Retail-Floor Benefit |
|---|---|---|
| Printing tiny text on base panels | Using large die-cut structural headers | Grabs shopper attention from 30 feet away12 |
| High retaining lips hiding items | Cutting front lips for 85% visibility13 | Drives the immediate 3-inch impulse conversion14 |
| Designing purely on computer screens | Applying the spatial distance rule | Eliminates visual cognitive overload in aisles |
I strip away excessive marketing text from the lower panels because rushing shoppers will never read it; your layout must physically command attention from across the aisle before they ever touch the merchandise.
🛠️ Harvey's Desk: Worried your retail graphics are too visually cluttered to pull impulse foot traffic from thirty feet away? 👉 Claim Your Visual Layout Review ↗ — No forms that trigger endless sales calls. Just pure value.
What are the 5 PS of packaging?
Mastering the traditional marketing mix means nothing if your physical components fail to survive their designated environment.
The 5 PS of packaging are product, price, place, promotion, and positioning. Packaging must effectively protect the merchandise, accurately reflect its price point, survive the logistical place or environment, boldly promote the core brand messaging, and physically position the goods efficiently on the retail shelf.
But knowing this theory isn't enough when the machines start running and environmental physics takes over on the factory floor.

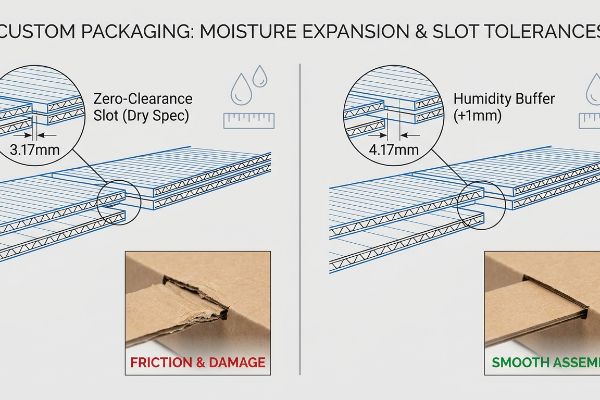

Why Standard Slot Tolerances Fail on the Factory Floor
Designers in climate-controlled offices often set interlocking tab tolerances based strictly on the absolute dry caliper of the flat board. They assume that if a standard B-flute board measures exactly 0.125 inches (3.17 mm) thick15 on their desk, it will maintain that precise dimension months later when it reaches a big-box retailer in a completely different climate zone.
In my facility, I routinely see this theoretical perfection shatter during pre-production testing. When corrugated flat-packs are shipped via ocean freight or stored in high-humidity regions, the porous testliner absorbs ambient moisture and physically swells. A slot that perfectly fit the tab in the software suddenly becomes far too tight. I test this using a digital micrometer on swollen boards; pushing a 3.42 mm swollen tab into a 3.17 mm dry-spec slot causes massive friction, crushing the paper flutes and slowing down the assembly line by an estimated 30%. By automatically engineering an extra 0.04 inches (1 mm) humidity buffer directly into the receiving slots of our dielines, I absorb that environmental paper expansion, ensuring the co-packer experiences a frictionless assembly that completely wipes out the risk of expensive manual rework fees.
| Common Rookie Mistake | The Pro Fix | Retail-Floor Benefit |
|---|---|---|
| Drafting tight zero-clearance slots | Adding a 1 mm humidity buffer16 | Prevents severe assembly friction at the co-packer |
| Ignoring ambient moisture swelling | Calculating porous fiber expansion17 | Eliminates torn top-sheets during setup |
| Relying on dry lab micrometer data | Engineering for environmental realities | Keeps the physical packaging rollout on schedule |
I refuse to approve dielines built strictly for dry office environments because ignoring the physics of moisture expansion will completely wipe out your project's profit margin on the co-packing line.
🛠️ Harvey's Desk: Do you know the exact moisture expansion rate of your B-flute board? Don't let a 2-millimeter structural flaw ruin a 500-store rollout. 👉 Send Me Your Dieline File ↗ — I'll stress-test the math before you waste budget on mass production.
Conclusion
You can choose a cheaper supplier, but when that tightly cut corrugated board swells in a humid warehouse, the resulting assembly friction slows down the co-packing line by an estimated 30% and completely wipes out your profit margin. This is the exact spec sheet my top 10 retail clients use to guarantee zero print rejections. Stop risking your logistics on theoretical tolerances and let me personally run your project through my Free Dieline Pre-Flight Audit ↗ to catch these fatal errors before mass production begins.
